Parking Brake Cable Components
Parking Brake Cable Components

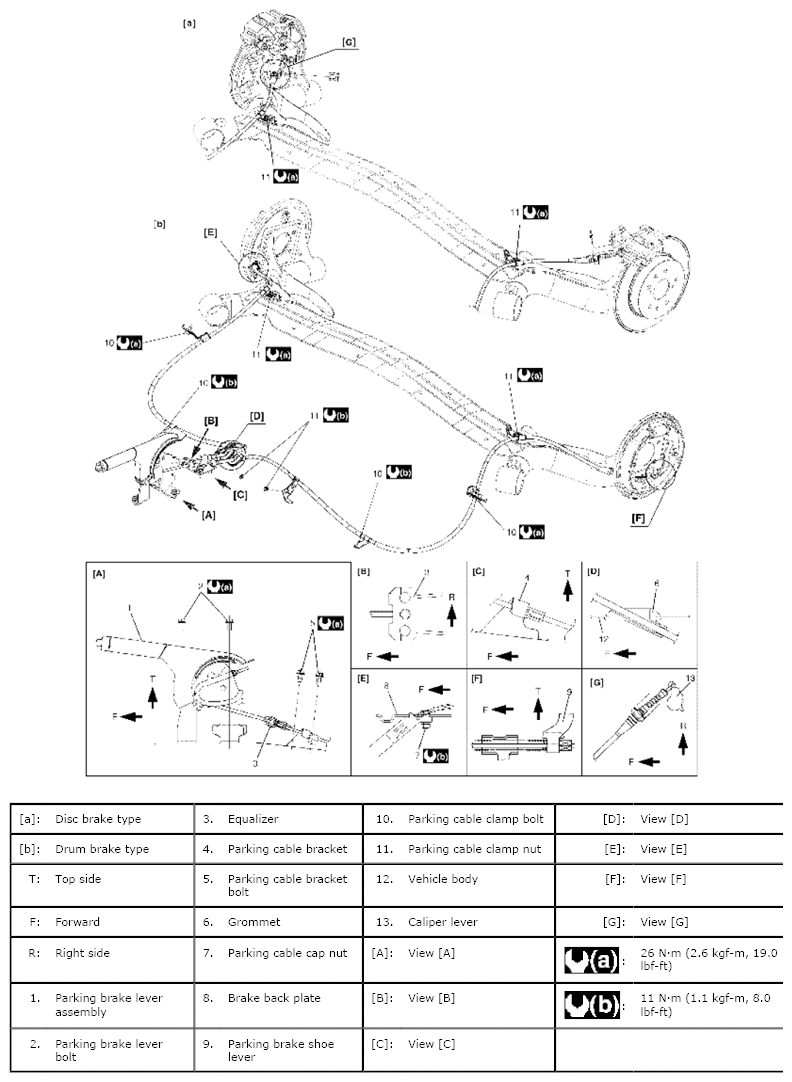

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
