Keyless Start System Electric Wiring Circuit Diagram

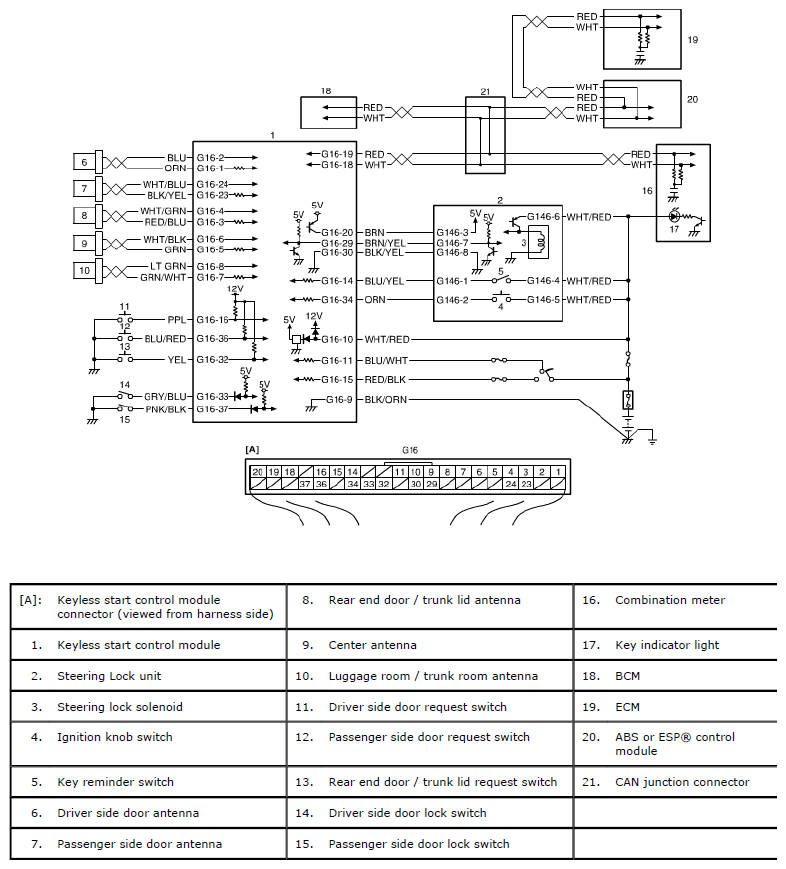

Fig 1: Keyless Start System Electric Wiring Circuit Diagram

G06869287

Courtesy of SUZUKI OF AMERICA CORP.
