DTC No. 11: Communication Error with Steering Lock Unit: Wiring Diagram

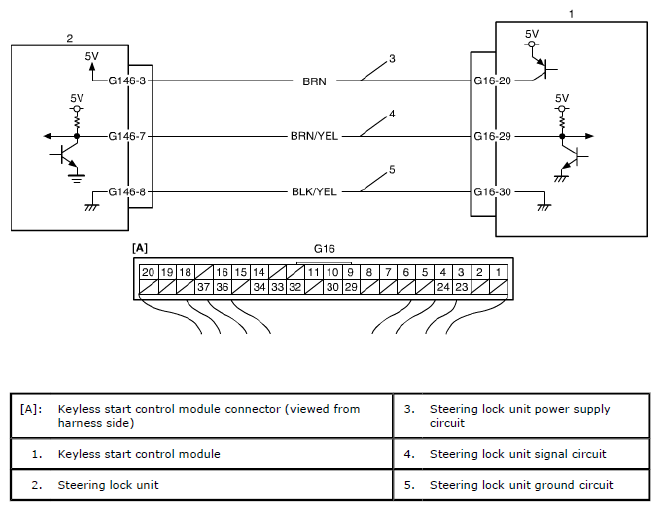

Fig 1: Steering Lock Unit Wiring Diagram

G06869306

Courtesy of SUZUKI OF AMERICA CORP.
