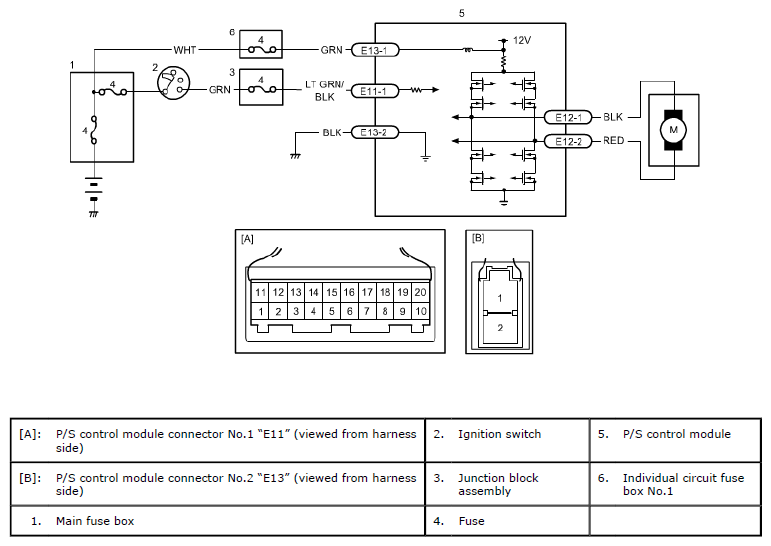

Home >> Suzuki >> 2012 >> SX4 Base >> Repair and Diagnosis (Single Page) >> Steering >> Electronic Steering >> Power Assisted Steering System - Electric >> Diagnostic Information and Procedures >> DTC C1153: P/S Control Module Power Supply Circuit >> Circuit Diagram
