Catalyst System Layout

The system has A/F sensor and HO2S located upstream and downstream of WU-TWC as shown in figure below.

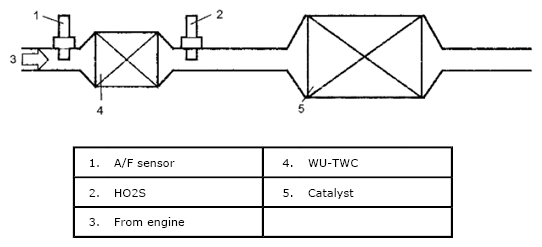

Fig 1: Identifying Catalyst System Layout
G06866598Courtesy of SUZUKI OF AMERICA CORP.
