Terminal Arrangement of 4WD Control Module

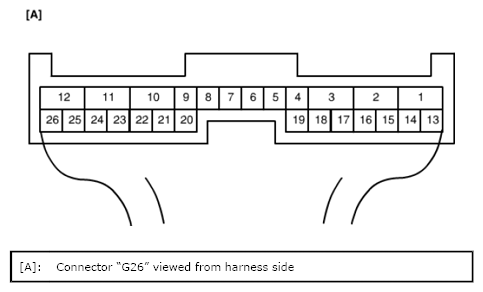

Fig 1: Identifying Terminal Arrangement Of 4WD Control Module
G06868317Courtesy of SUZUKI OF AMERICA CORP.
TERMINAL ARRANGEMENT OF 4WD CONTROL MODULE

Terminal Circuit Terminal Circuit
G26-2 Coupling assembly (ground) G26-14 "4WD lock" switch
G26-3 Coupling assembly (power) G26-21 Data link connector (DLC)
G26-10 Ground G26-22 CAN communication line (high)
G26-11 Power source for internal memory G26-23 CAN communication line (low)
G26-12 Power source G26-24 Coupling air temperature sensor (ground)
G26-13 "4WD" switch G26-25 Coupling air temperature sensor (power)
