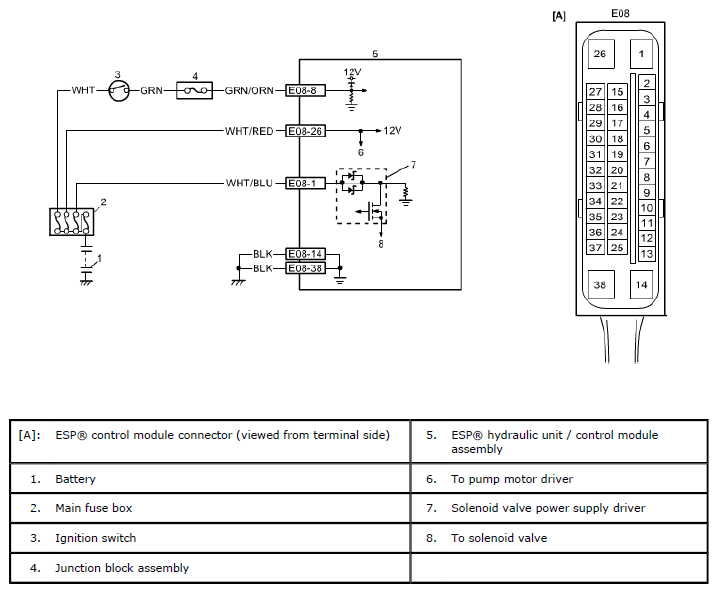

Home >> Suzuki >> 2012 >> SX4 Base >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Electronic Stability Program >> Diagnostic Information and Procedures >> ESP® Hydraulic Unit/Control Module Assembly Power Supply and Ground Circuit Check >> Circuit Diagram
