Fuel Filler Cap Inspection

WARNING: If cap requires replacement, only a cap with the same features should be used. Failure to use correct cap can result in fire and personal injury.

Remove cap (1), and check gasket (2) for deterioration or any damage. If gasket is defective, replace cap.

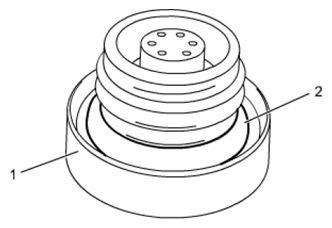

Fig 1: Identifying Fuel Filler Cap And Gasket
G06526546Courtesy of SUZUKI OF AMERICA CORP.
