Generator Removal and Installation: Installation

Reference: GENERATOR COMPONENTS

Reference: GENERATOR INSPECTION

Reverse removal procedure, noting the following points

• Tighten generator bolts in numerical order ("1" → "2" → "3") evenly and gradually.

  Tightening torque

  Generator bolt* (a): 45 N.m (4.6 kg-m, 33.5 lbf-ft)

• Connect wire (1) to generator as shown in figure, and tighten "B" terminal nut to specified torque.

  Tightening torque

  "B" terminal nut (b): 11 N.m (1.1 kg-m, 8.5 lbf-ft)

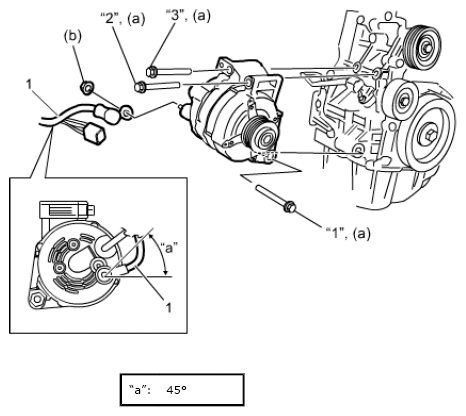

  Fig 1: Identifying Wire To Generator And B Terminal Nut

  Courtesy of SUZUKI OF AMERICA CORP.
