Reassembling Note for Wiring Harness
>>
Around Main Floor
>>
Right Side
Right Side

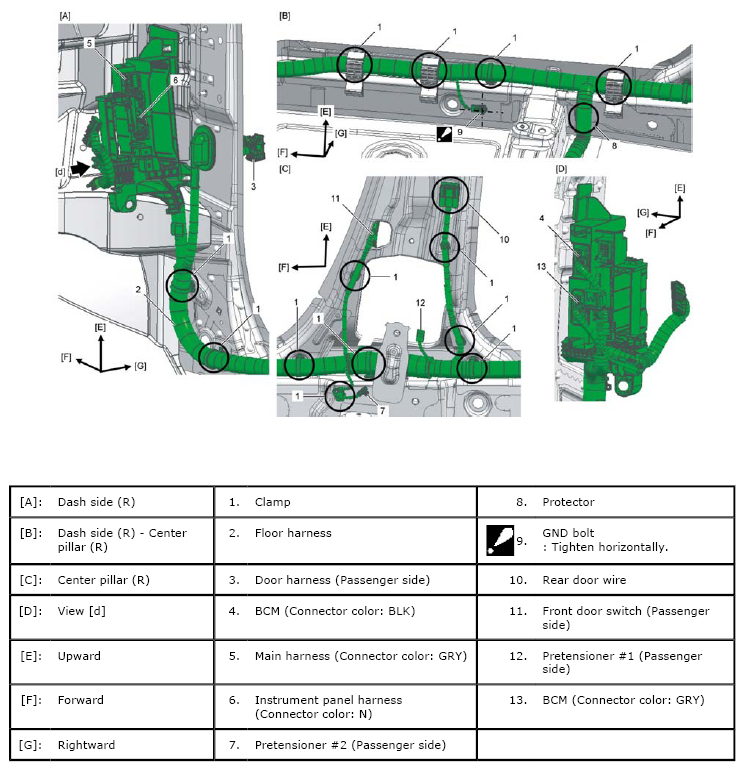

Fig 1: Identifying Wiring Harness - Right Side (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

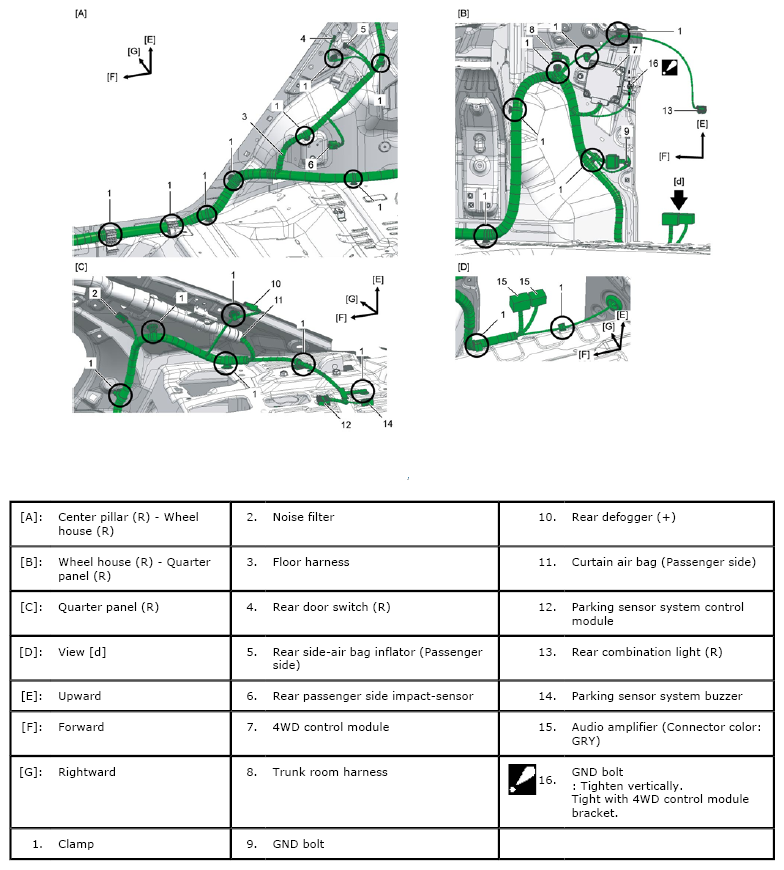

Fig 2: Identifying Wiring Harness - Right Side (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
