Manual Transmission Assembly Components

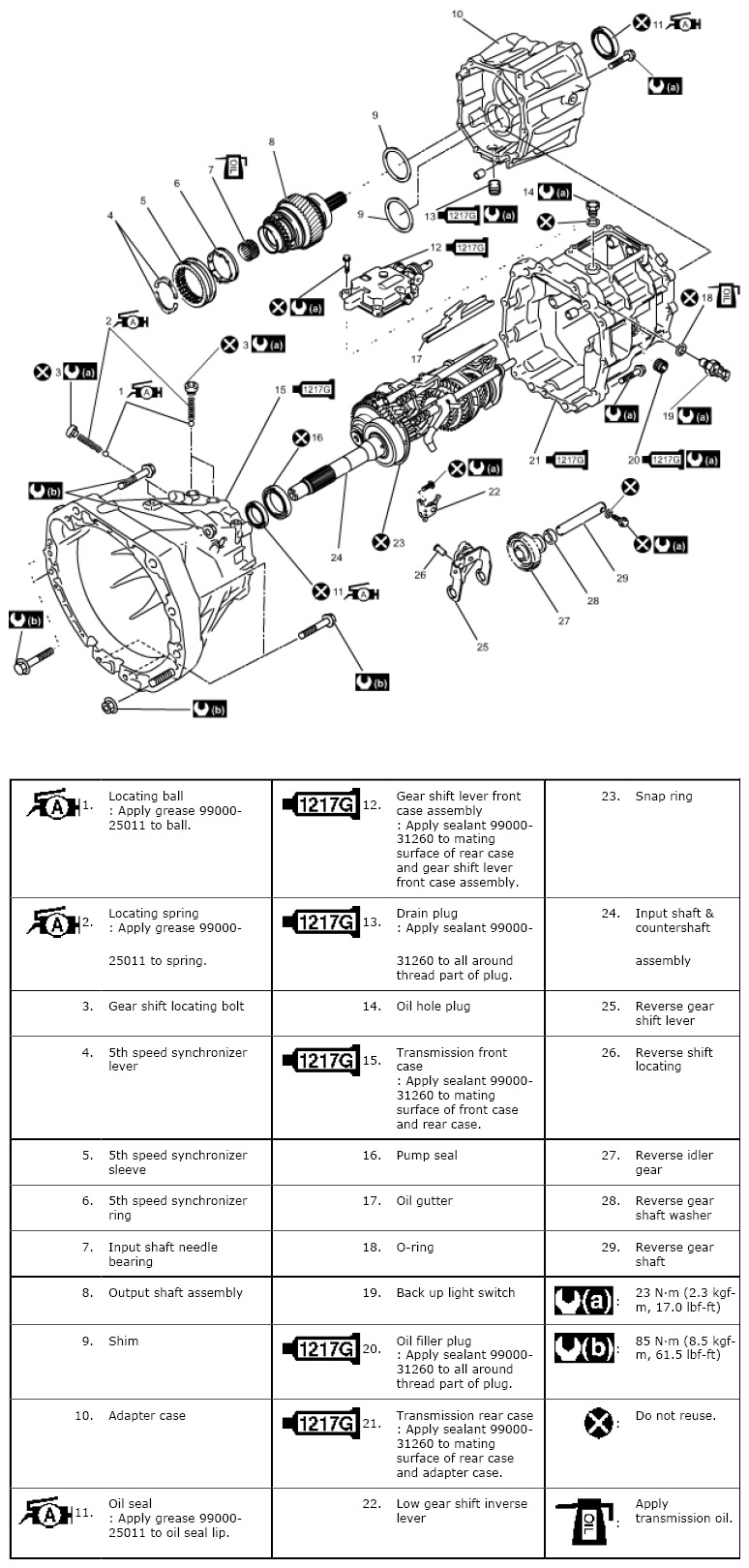

Fig 1: Exploded View Of Manual Transmission Assembly

G08899104

Courtesy of SUZUKI OF AMERICA CORP.
