Gear Shift Lever Front Case Assembly Components

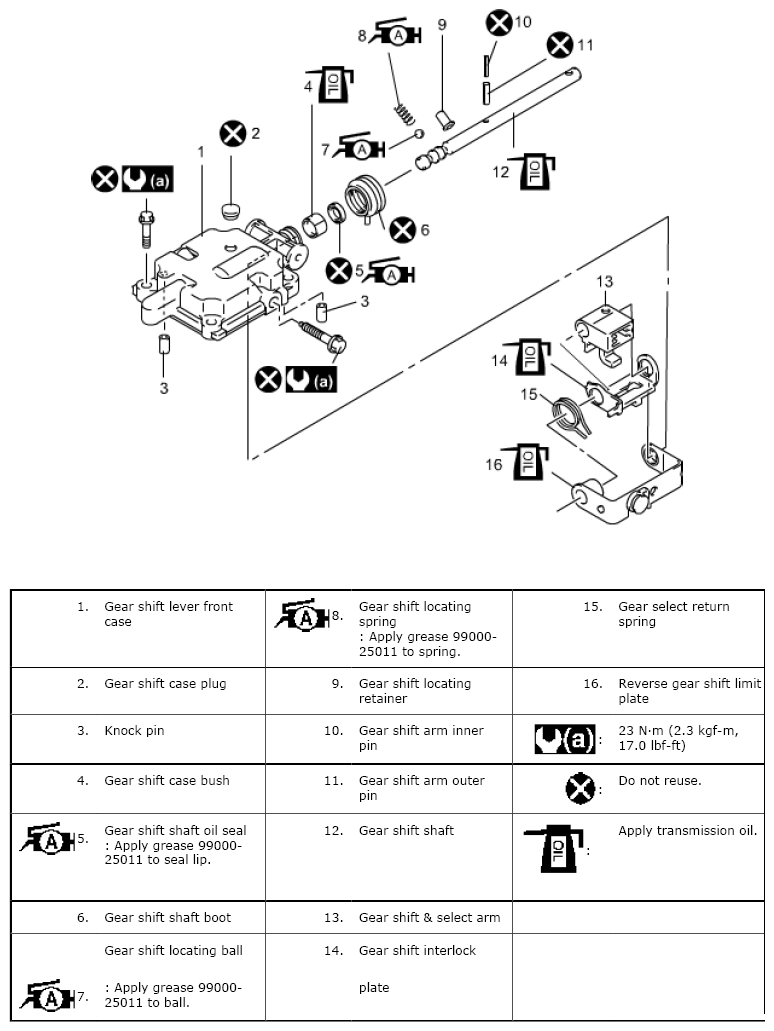

Fig 1: Exploded View Of Gear Shift Lever Front Case Assembly

G08899106

Courtesy of SUZUKI OF AMERICA CORP.
