Back Up Light Switch Inspection

Reference: BACK UP LIGHT SWITCH REMOVAL AND INSTALLATION

Check back up light switch for function using ohmmeter.

If resistance is not as specified below, replace back up light switch.

Back up light switch specification

Switch ON (Push): Continuity

Switch OFF (Release): No continuity

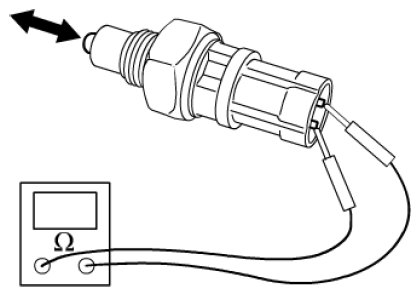

Fig 1: Checking Back Up Light Switch For Function Using Ohmmeter

Courtesy of SUZUKI OF AMERICA CORP.
