Oil Pump Assembly Components
NOTE:
The parts with * (asterisk) are not available as replacement parts individually. If any detect is found on those parts, replace oil pump assembly.

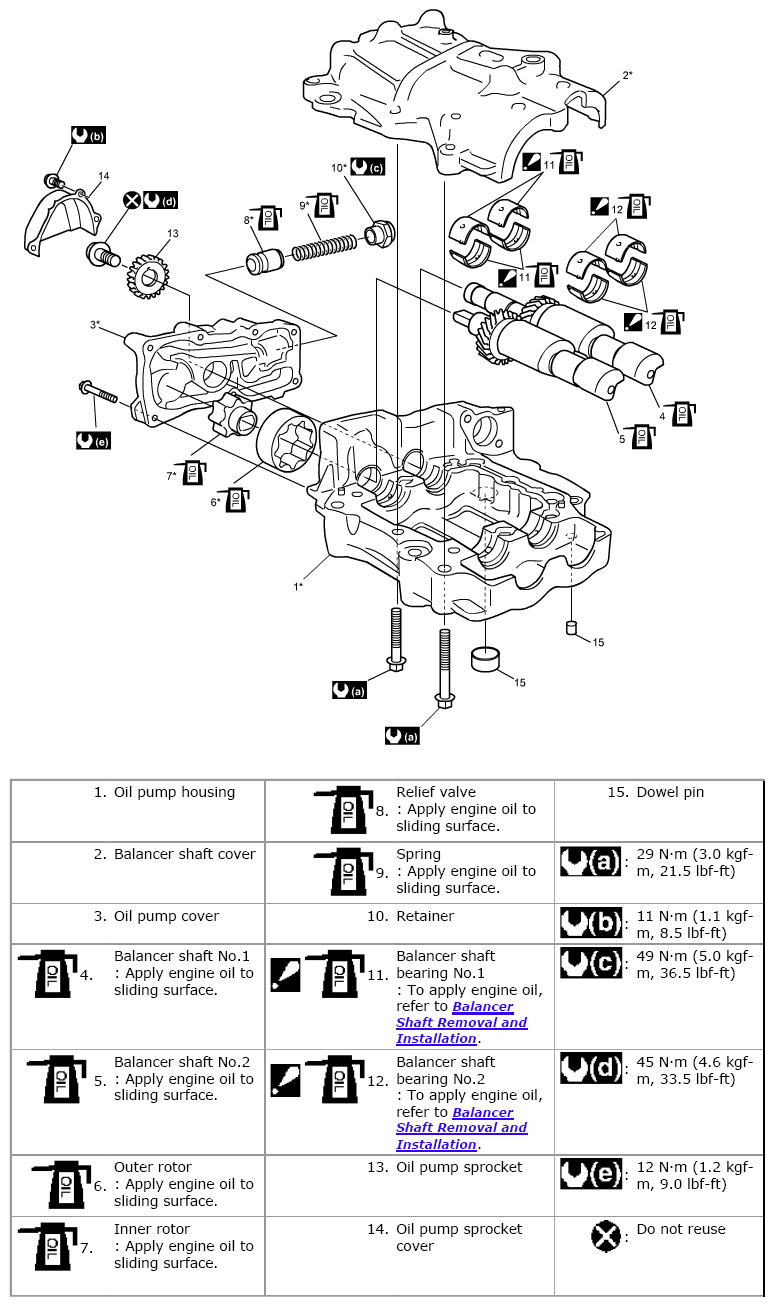

Fig 1: Identifying Oil Pump Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
