LEMON Manuals: Even more car manuals for everyone

Home >> Suzuki >> 2012 >> Grand Vitara Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wiring Systems >> Reassembling Note for Wiring Harness >> Around Main Floor >> Left Side

Left Side

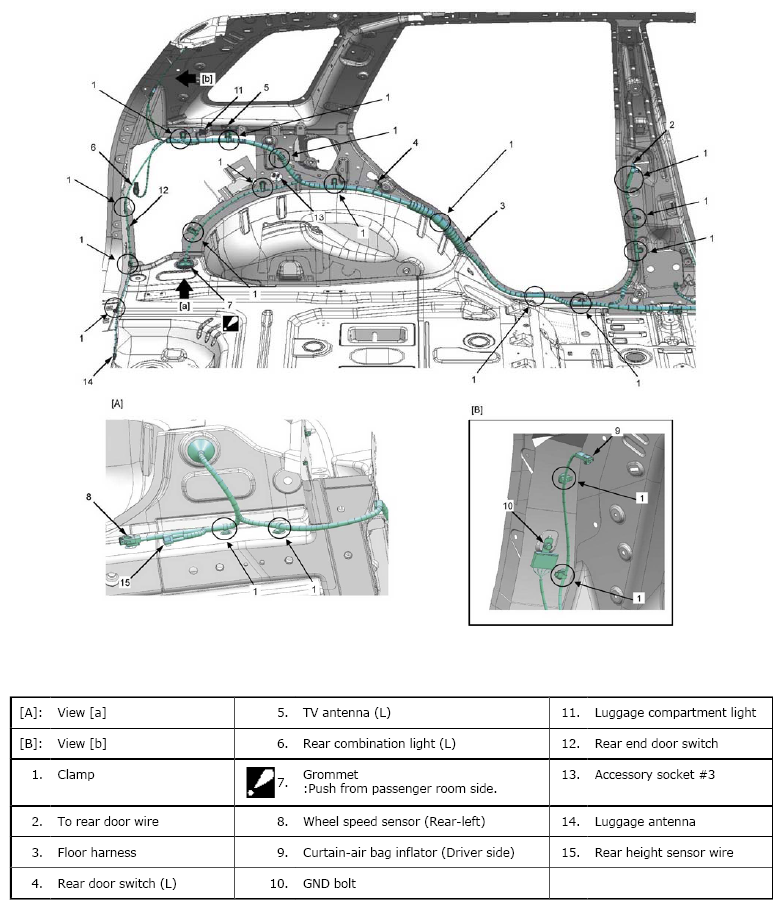

Fig 1: Identifying Wiring Harness Clips (Left Side, Around Main Floor)

G08899462

Courtesy of SUZUKI OF AMERICA CORP.
