Electronic Stability Program Input/Output Block Diagram

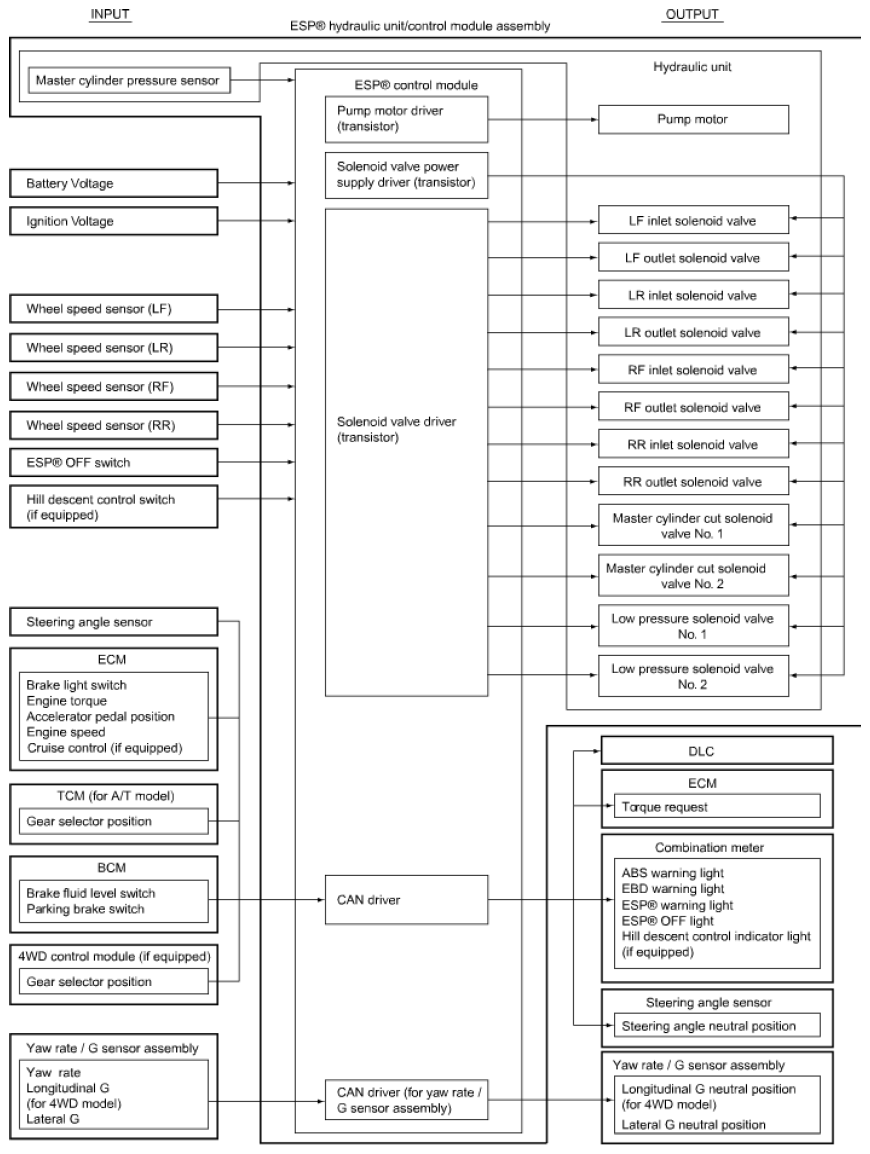

Fig 1: Electronic Stability Program Input/Output Block Diagram

G08895807

Courtesy of SUZUKI OF AMERICA CORP.
