Front Strut Assembly Components

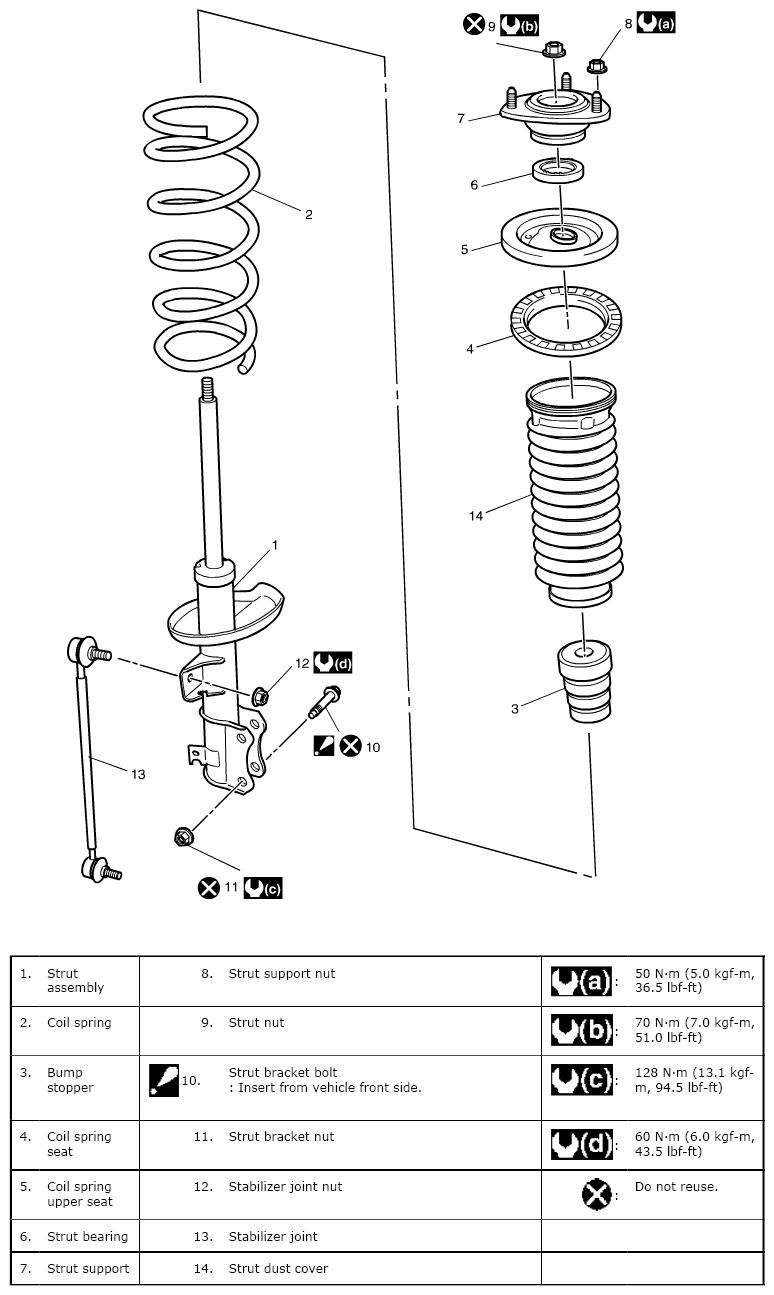

Fig 1: Exploded View Of Front Strut Assembly

G08895550

Courtesy of SUZUKI OF AMERICA CORP.
