Around Engine

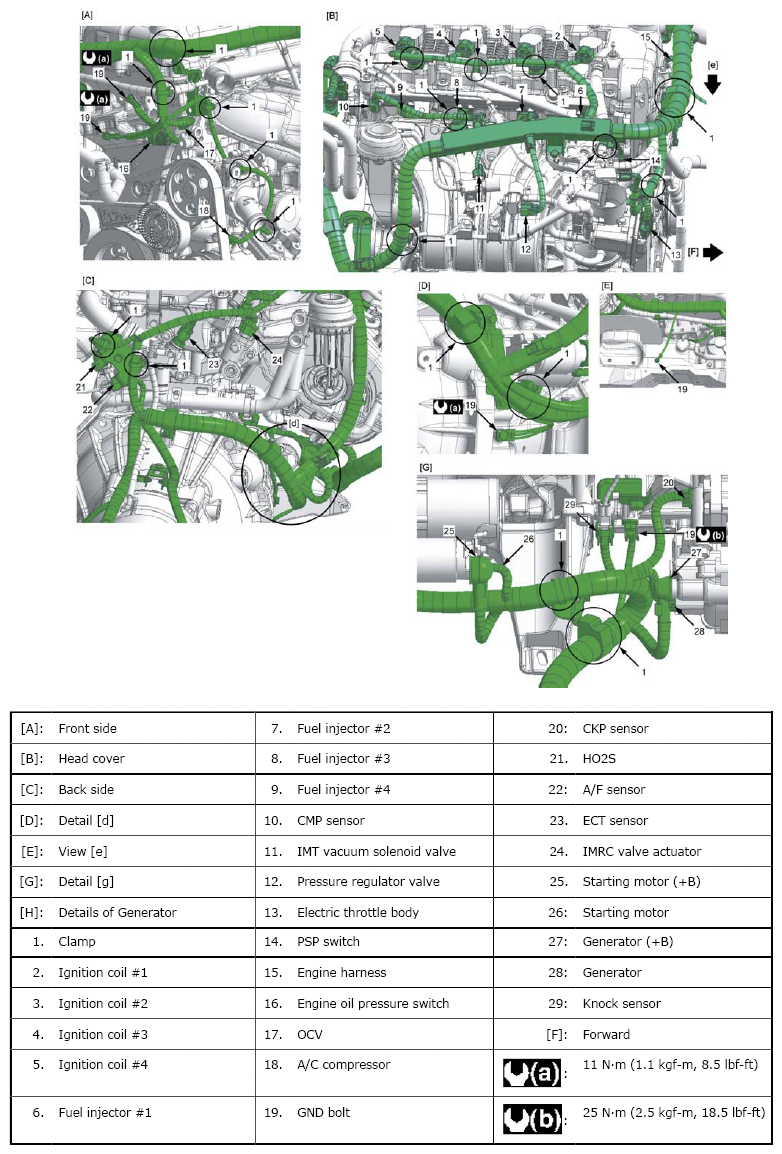

Fig 1: Identifying Wiring Harness Clips (Around Engine)

G08899452

Courtesy of SUZUKI OF AMERICA CORP.
