ABS (ESP®) Hydraulic Unit/Control Module Assembly Components

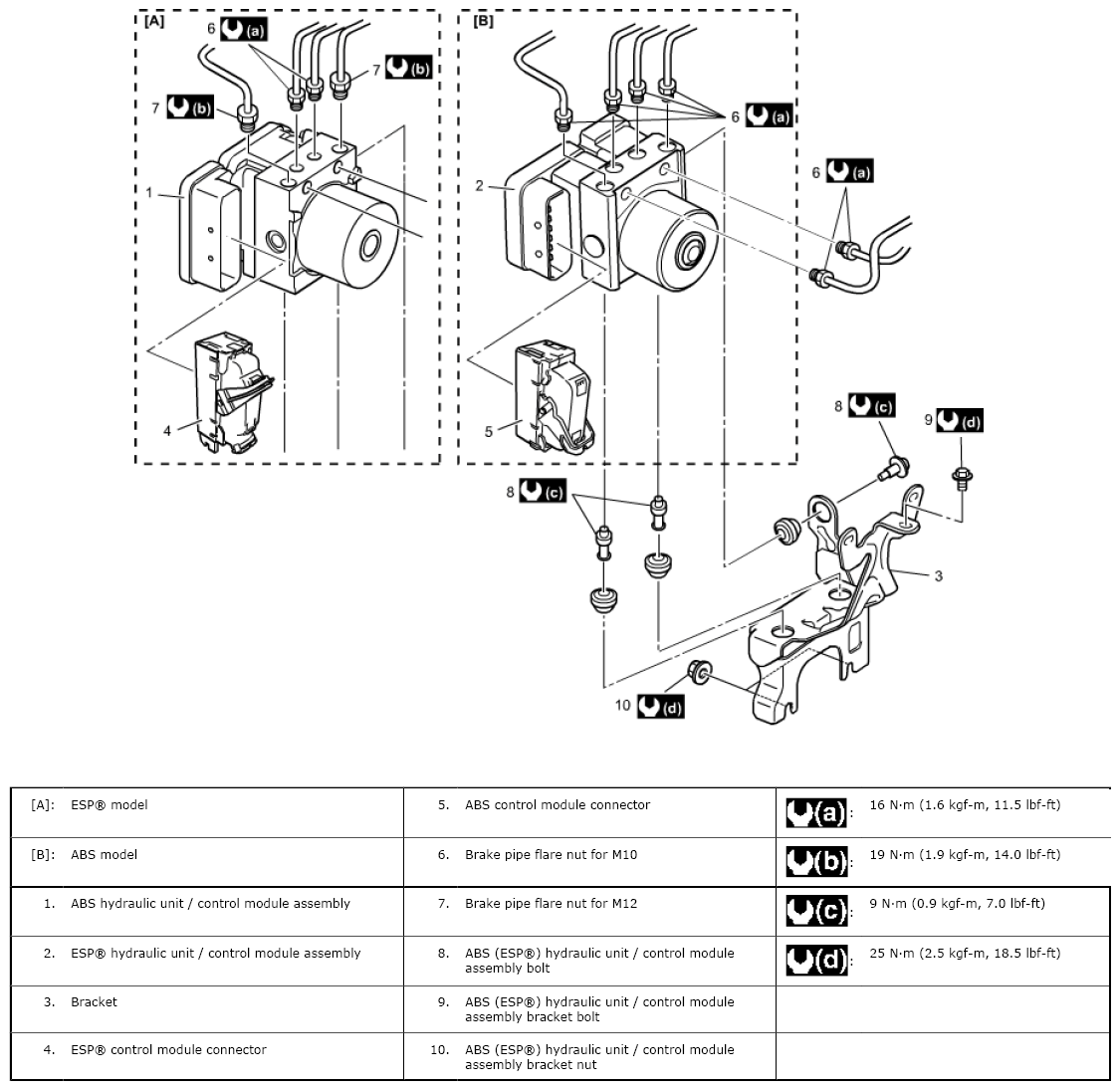

Fig 1: Identifying ABS (ESP®) Hydraulic Unit/Control Module Assembly Components

G08894408

Courtesy of SUZUKI OF AMERICA CORP.
