Diagnosis Procedure
DIAGNOSIS PROCEDURE
| Step | Action | YES | NO |
|---|---|---|---|

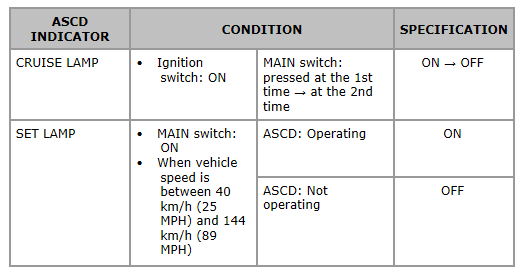

| 1 | CHECK OVERALL FUNCTION Check ASCD indicator under the following conditions. OK or NG |
INSPECTION END | GO TO 2. |
| 2 | CHECK DTC Check that DTC UXXXX is not displayed. OK or NG |
GO TO 3. | Perform trouble diagnoses for DTC UXXXX. |
| 3 | CHECK COMBINATION METER FUNCTION Refer to [DIAGNOSIS AND REPAIR WORKFLOW: METER, WARNING LAMP AND INDICATOR ] OK or NG |
GO TO 4. | Go to [METER SYSTEM: SYSTEM DIAGRAM ] |
| 4 | CHECK INTERMITTENT INCIDENT Refer to [SERVICE INFORMATION FOR ELECTRICAL INCIDENT: INTERMITTENT INCIDENT ] |
INSPECTION END |
