Timing Chain: Exploded View

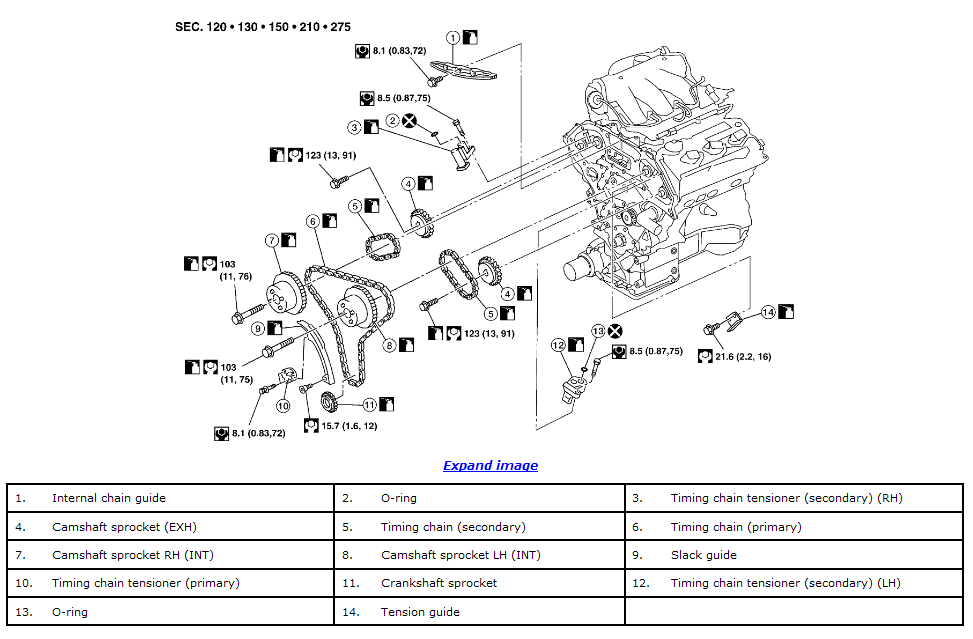

Fig 1: Exploded View Of Timing Chain Components With Torque Specifications

G00498942

Courtesy of SUZUKI OF AMERICA CORP.
