Component Function Check

DIAGNOSIS PROCEDURE CHART

Step	Action	YES	NO

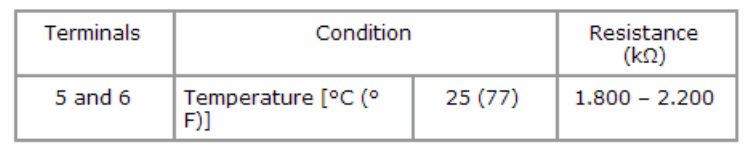

1	CHECK INTAKE AIR TEMPERATURE (IAT) SENSOR Turn ignition switch OFF. Disconnect mass air flow sensor harness connector. Check resistance between mass air flow sensor terminals as follows. Courtesy of SUZUKI OF AMERICA CORP. Is the inspection result normal?	GO TO 2.	Proceed to "Diagnosis Procedure".
2	CHECK INTERMITTENT INCIDENT Refer to [SERVICE INFORMATION FOR ELECTRICAL INCIDENT: INTERMITTENT INCIDENT ] Is the inspection result normal?	INSPECTION END	Proceed to "Diagnosis Procedure".
