Clutch Release Mechanism: Exploded View [5M/T]

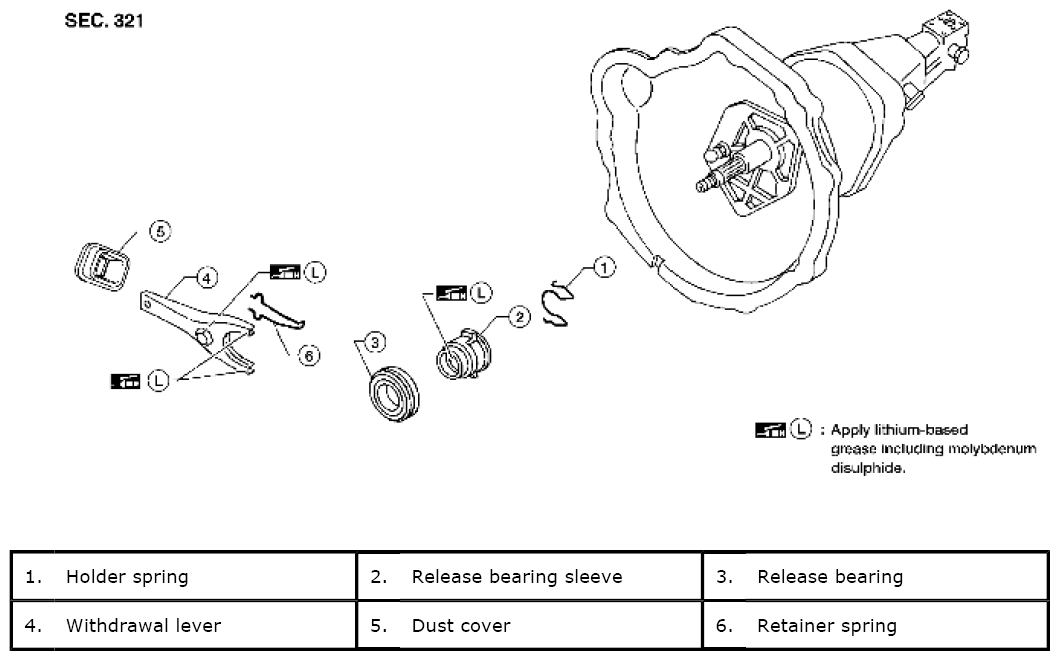

Fig 1: Exploded View Of Clutch Release Mechanism (5M/T)

G06445786

Courtesy of SUZUKI OF AMERICA CORP.
