Home >> Suzuki >> 2012 >> Equator Base >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension & Wheel Alignment >> Repair Instructions >> Knuckle: Removal and Installation >> Notes

Knuckle: Removal and Installation: Notes

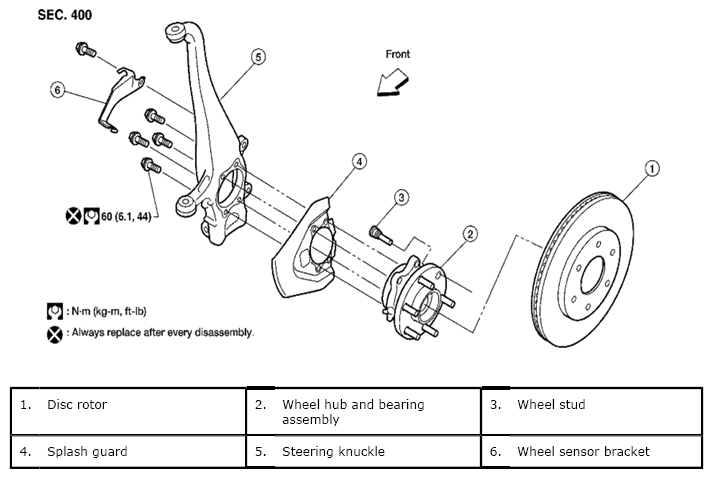

Fig 1: Exploded View Of Knuckle With Torque Specifications

G06444693

Courtesy of SUZUKI OF AMERICA CORP.
