Power Steering Oil Pump: Component

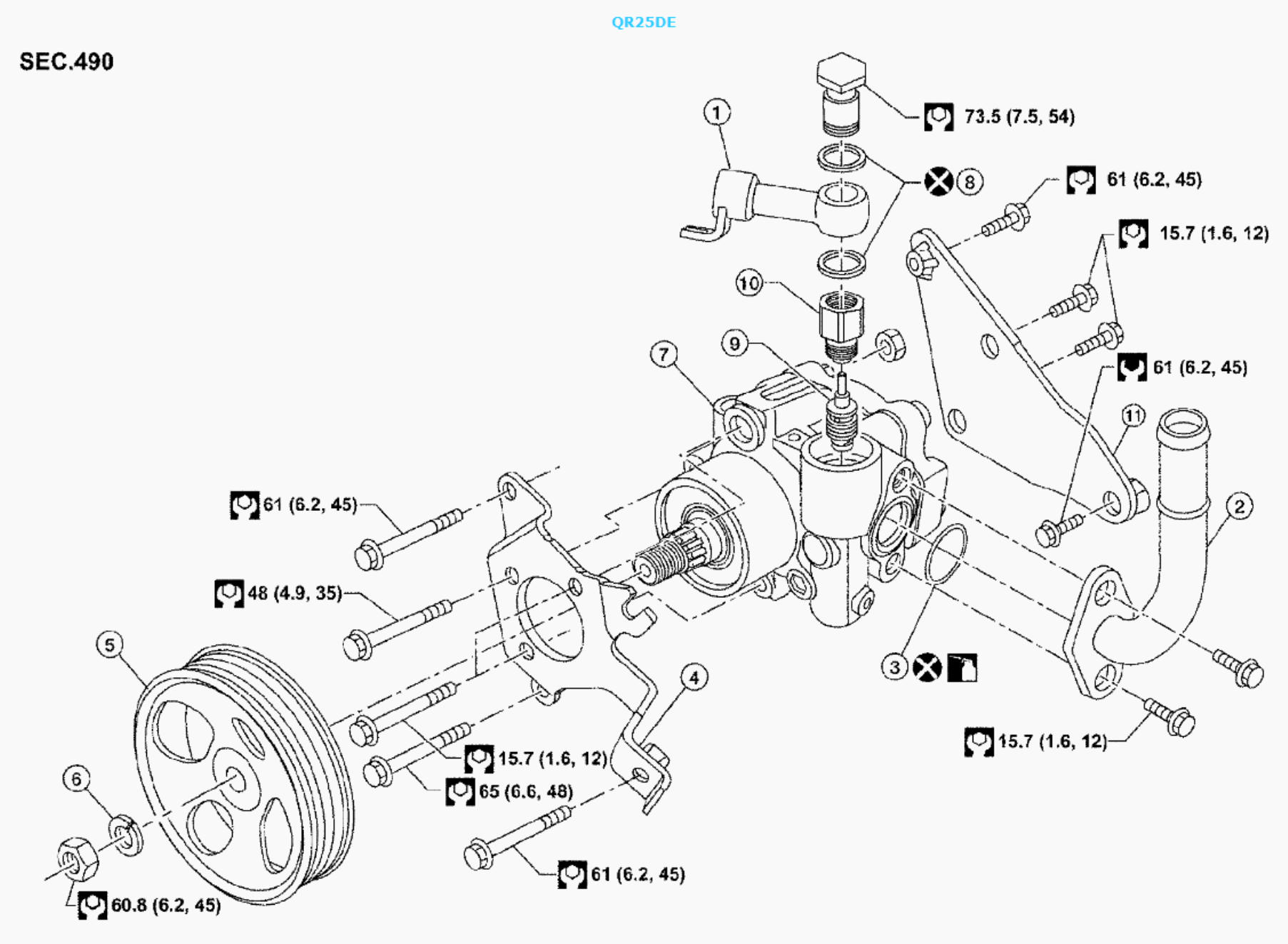

Fig 1: Identifying Power Steering Oil Pump Components (QR25DE) (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

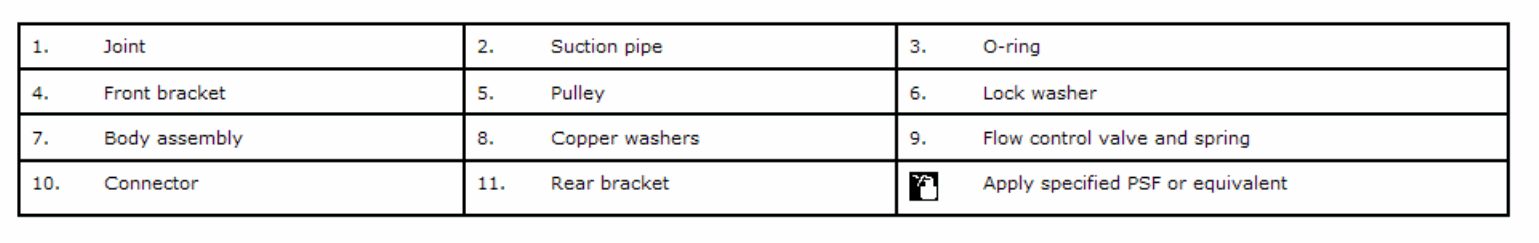

Fig 2: Identifying Power Steering Oil Pump Components (QR25DE) (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

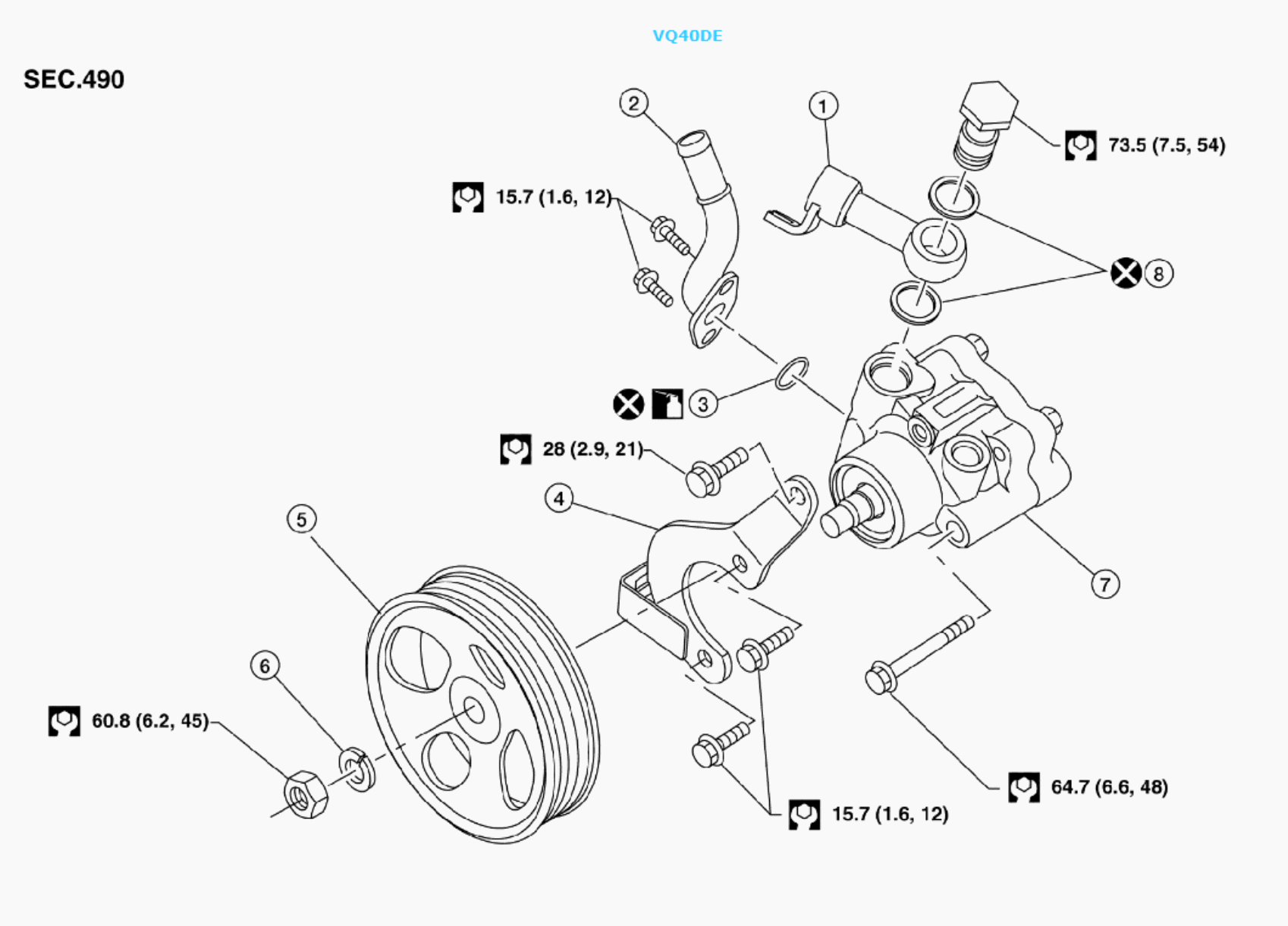

Fig 3: Identifying Power Steering Oil Pump Components (VR40DE) (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

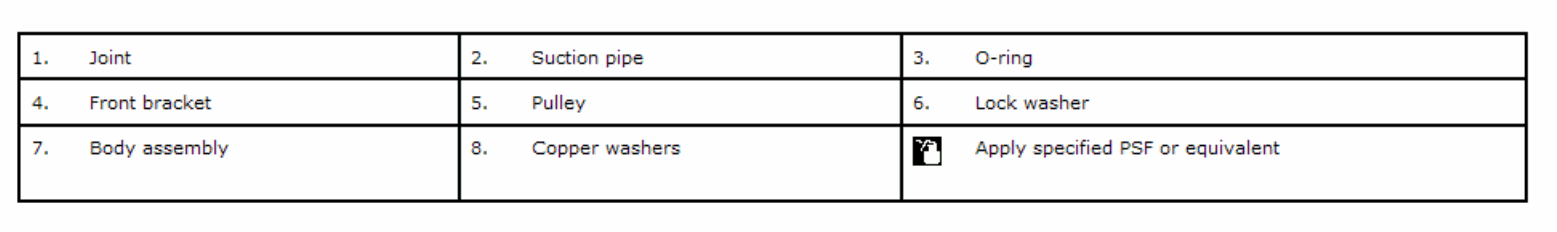

Fig 4: Identifying Power Steering Oil Pump Components (VR40DE) (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

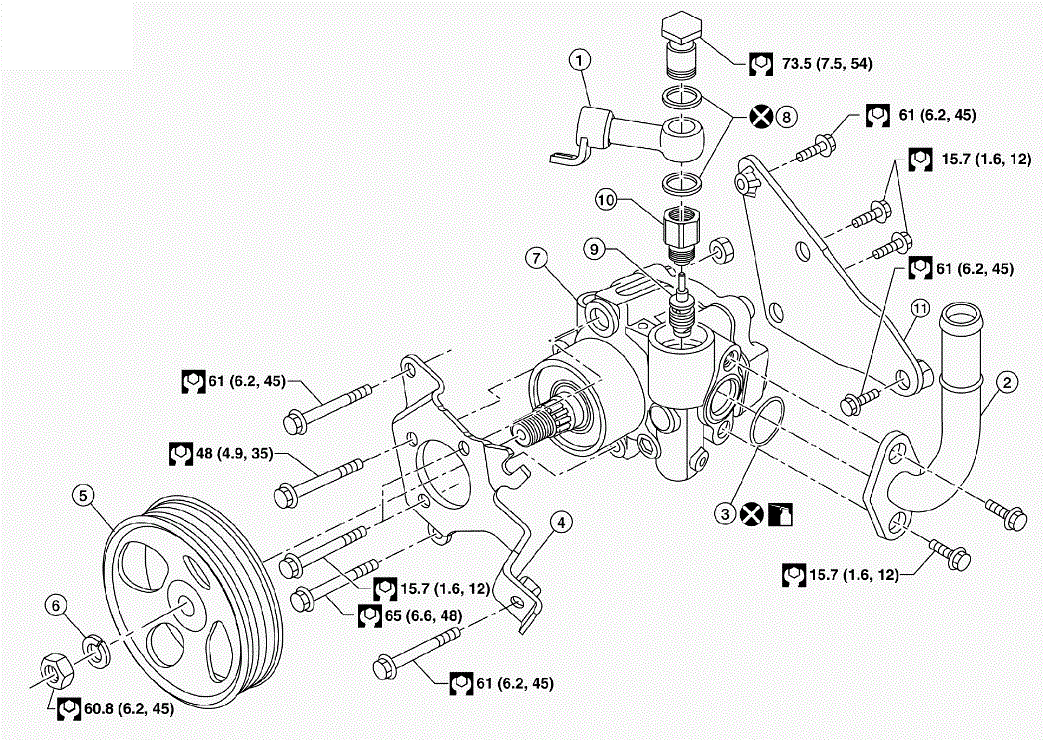

Fig 1: Identifying Power Steering Oil Pump Components (QR25DE) (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

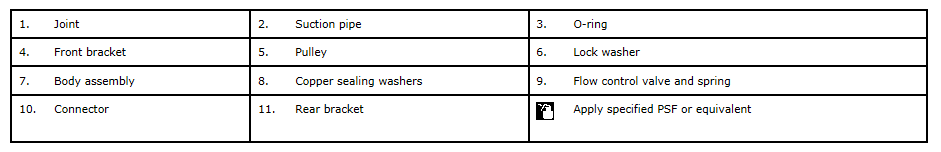

Fig 2: Identifying Power Steering Oil Pump Components (QR25DE) (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

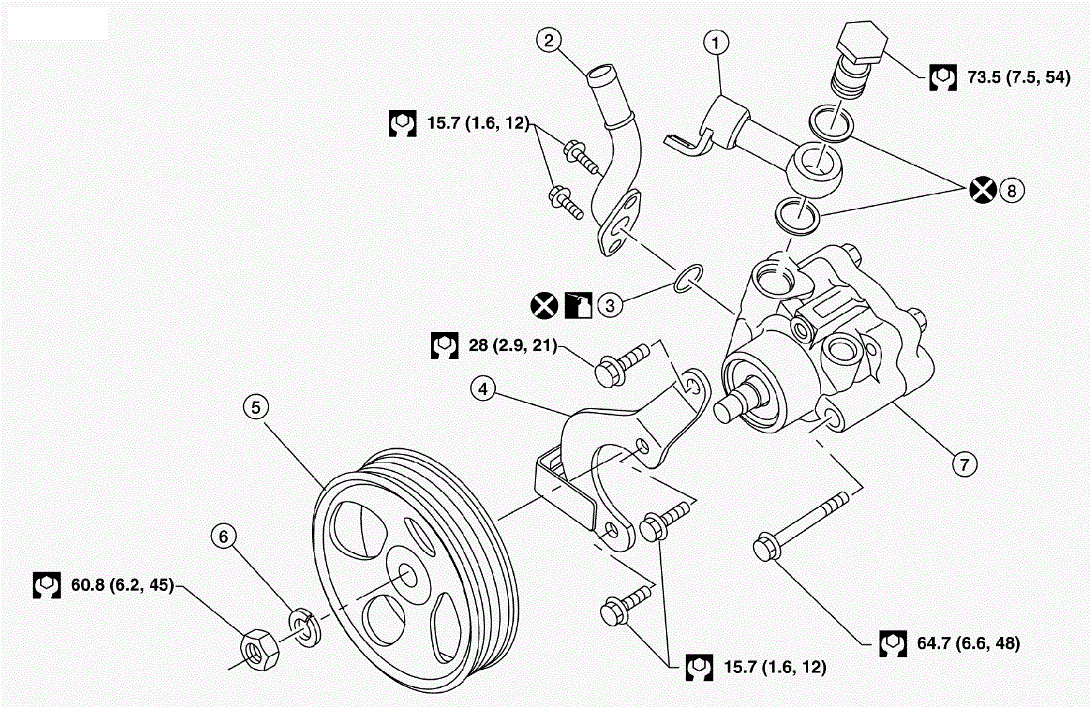

Fig 3: Identifying Power Steering Oil Pump Components (VQ40DE) (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

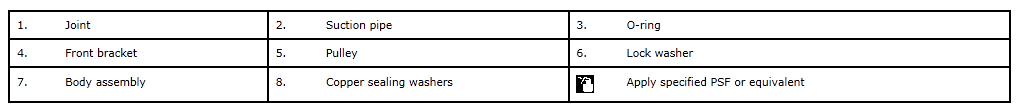

Fig 4: Identifying Power Steering Oil Pump Components (VQ40DE) (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
