Transmitter Wake-Up Operation

  1. Turn ignition switch ON.

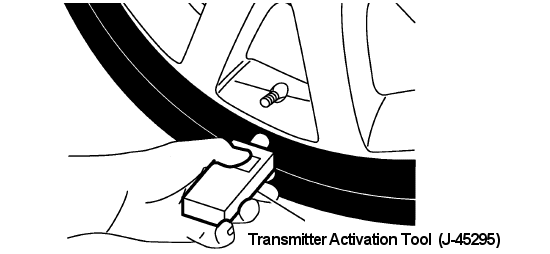

  2. With the transmitter activation tool pushed against the Front Left transmitter, press the button for 5 seconds. See Figure. The hazard warning light flash twice as each tramsmitter is woken-up.
  3. Repeat procedure for each wheel, in order: Front Left, Front Right, Rear Right, Rear Right.
  4. When the BCM finishes assigning each tire ID, the BCM flashes the hazard warning lights (and trailer flasher lights, if equipped).
  5. After completing wake up of all transmitters, make sure low tire pressure warning light goes out.
