Oil Channel

WARNING: This page is about a different variant/trim than selected.

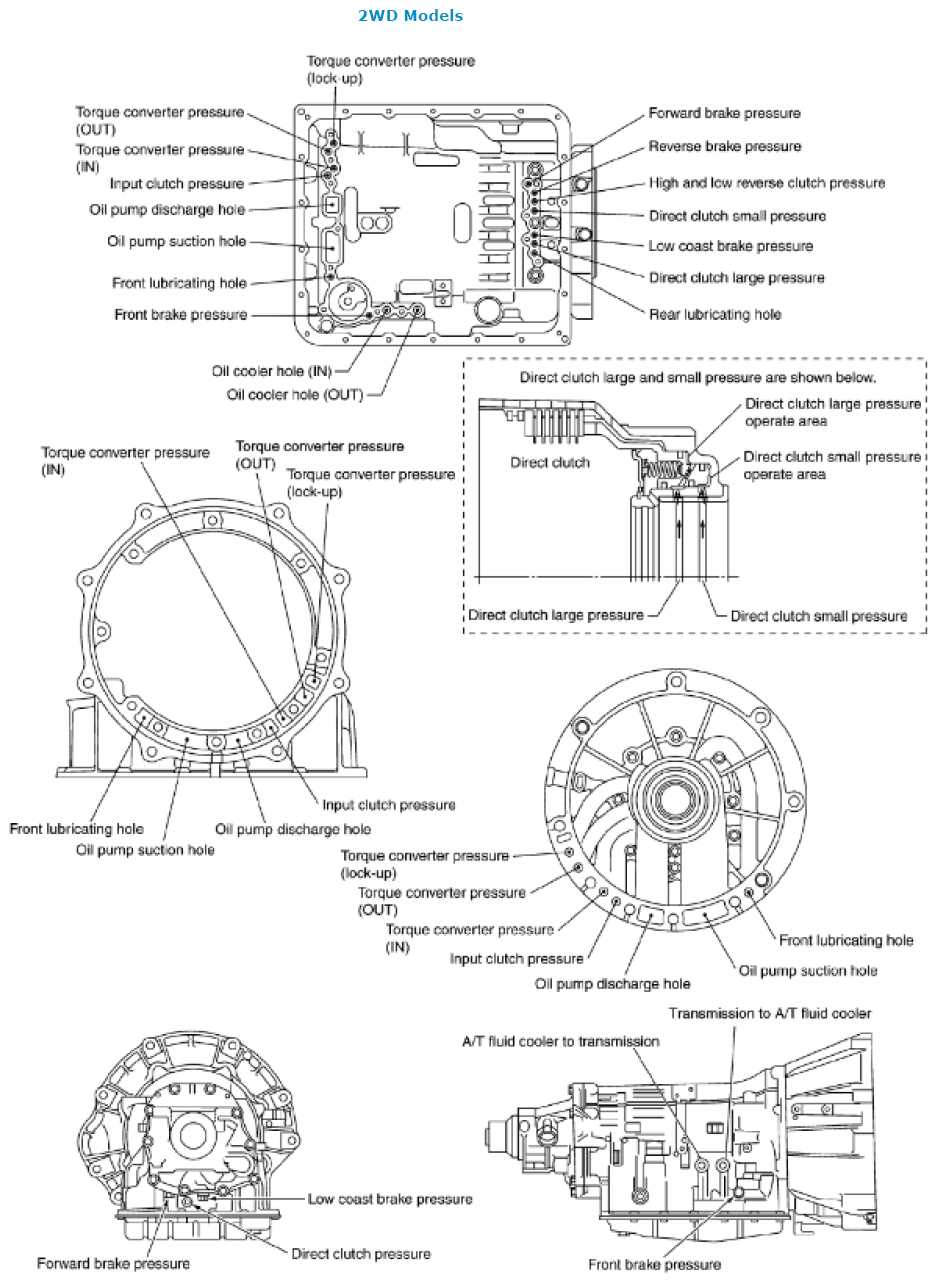

Fig 1: Identifying Oil Channel - 2WD Models
G06443169Courtesy of SUZUKI OF AMERICA CORP.

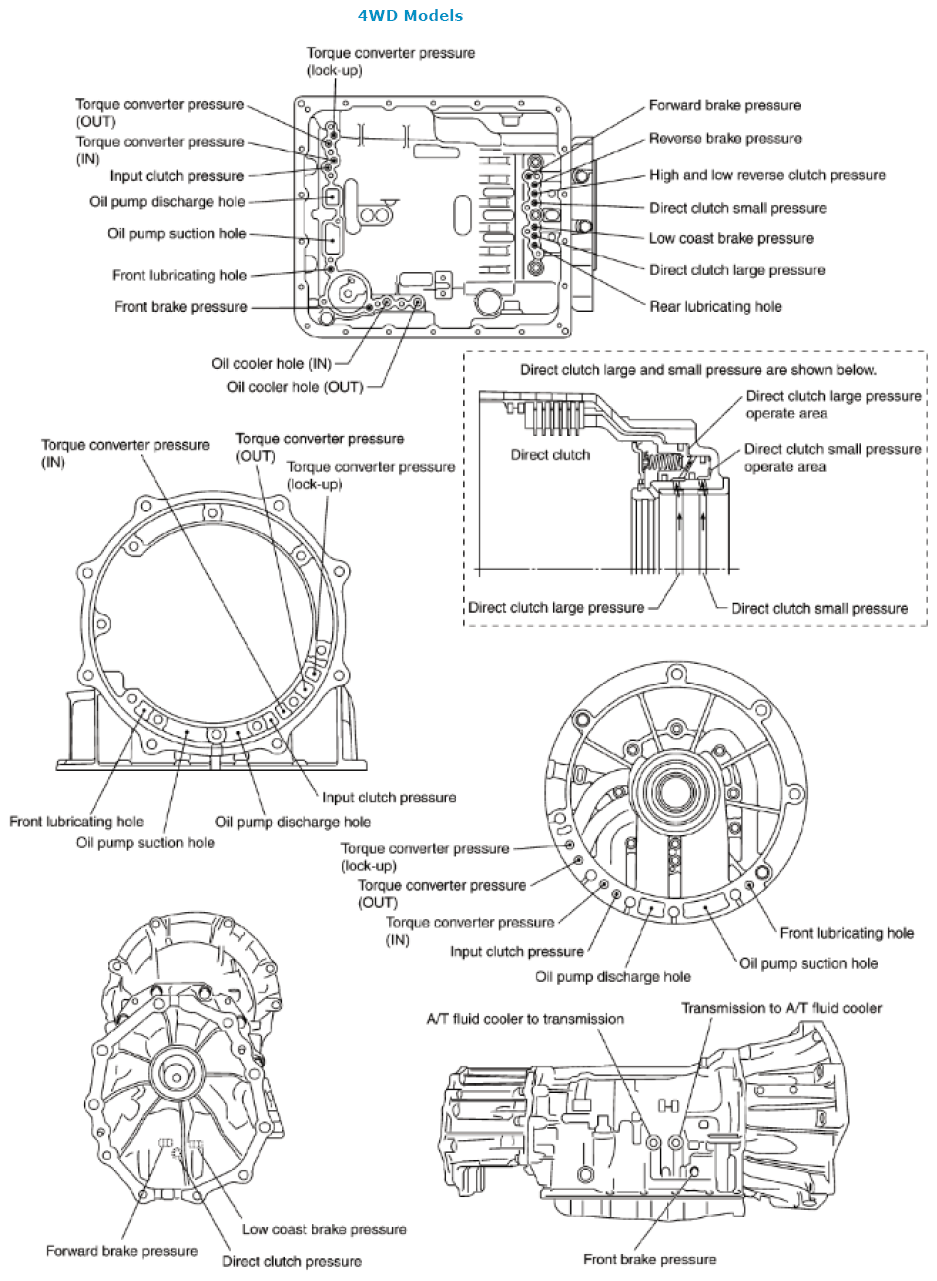

Fig 2: Identifying Oil Channel - 4WD Models
G06443170Courtesy of SUZUKI OF AMERICA CORP.
