Special Service Tool

WARNING: This page is about a different variant/trim than selected.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOL SPECIFICATION

Tool number (Kent-Moore No.) Tool name		Description
ST2505S001 (J-34301-C) Oil pressure gauge set ST25051001 (-) Oil pressure gauge ST25052000 (-) Hose ST25053000 (-) Joint pipe ST25054000 (-) Adapter ST25055000 (-) Adapter	Courtesy of SUZUKI OF AMERICA CORP.	Measuring line pressure
KV31103600 (J-45674) Joint pipe adapter (With ST25054000)	Courtesy of SUZUKI OF AMERICA CORP.	Measuring line pressure
ST33400001 (J-26082) Drift	Courtesy of SUZUKI OF AMERICA CORP.	Installing rear oil seal (2WD models) Installing oil pump housing oil seal 60 mm (2.36 in) dia. 47 mm (1.85 in) dia.
KV31102400 (J-34285 and J-34285-87) Clutch spring compressor	Courtesy of SUZUKI OF AMERICA CORP.	Installing reverse brake return spring retainer 320 mm (12.60 in) 174 mm (6.85 in)

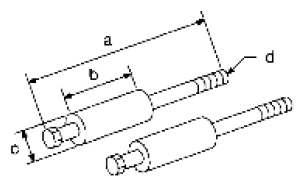

ST25850000 (J-25721-A) Sliding hammer	Courtesy of SUZUKI OF AMERICA CORP.	Remove oil pump assembly 179 mm (7.05 in) 70 mm (2.76 in) 40 mm (1.57 in) M12X1.75P

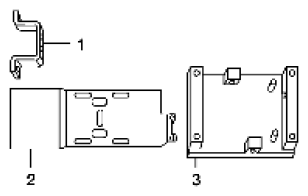

- (J-47002) Transmission jack adapter kit - (J-47002-1) Center bracket - (J-47002-3) Adapter plate - (J-47002-4) Adapter block	Courtesy of SUZUKI OF AMERICA CORP.	Assist in removal of transmission and transfer case as one assembly using only one transmission jack.
