Shift Control System: Inspection and Adjustment: Adjustment
WARNING: This page is about a different variant/trim than selected.

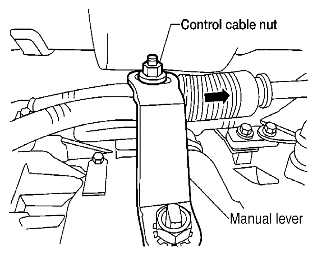

- Loosen nut of control cable.
- Place the manual lever and selector lever in "P" position.
- Push the control cable in the direction shown with a force of 9.8 N (1kg, 2.2 lb), and release it. This is in the natural state, tighten control cable nut to specifications.
Control cable nut: 14.7 N.m (1.5 kg-m, 11 ft-lb)
