Oil Pump: Disassembly and Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

Install O-ring to oil pump cover.

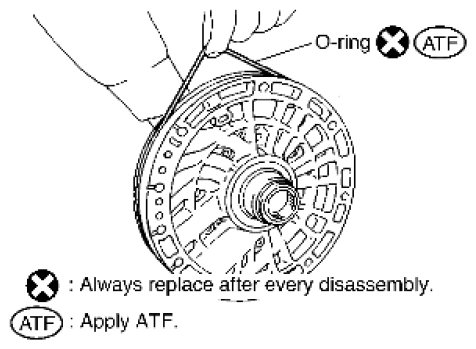

Fig 1: Installing O-Ring To Oil Pump Cover
Courtesy of SUZUKI OF AMERICA CORP.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Install O-ring to oil pump housing.

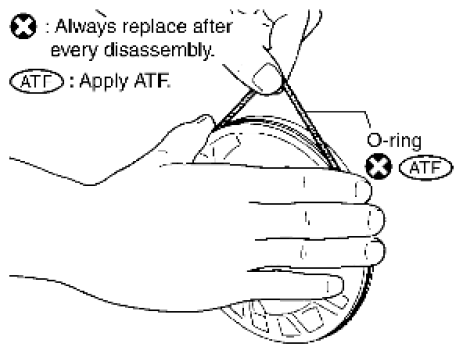

Fig 2: Installing O-Ring To Oil Pump Housing
Courtesy of SUZUKI OF AMERICA CORP.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Install oil pump housing oil seal to the oil pump housing until it is flush using Tool.

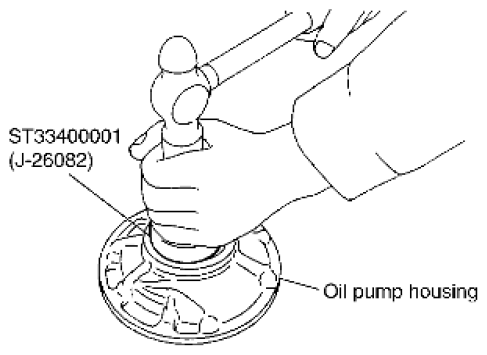

Fig 3: Tapping Oil Pump Housing Oil Seal
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: ST33400001 (J-26082)
CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.
After temporarily tightening the bolts for the oil pump housing to the oil pump cover, tighten them to the specified torque in the sequence shown.

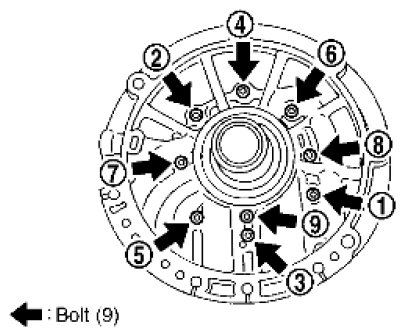

Fig 4: Locating Oil Pump Housing Bolts
Courtesy of SUZUKI OF AMERICA CORP.

Oil pump housing bolts: 9.0 N.m (0.92 kg-m, 80 in-lb.)
