Direct Clutch: Disassembly and Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

Install drive plates, driven plates and retaining plate in direct clutch drum.

Fig 1: Identifying Drive Plates
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Take care with order of plates.
Install snap ring in direct clutch drum using suitable tool.

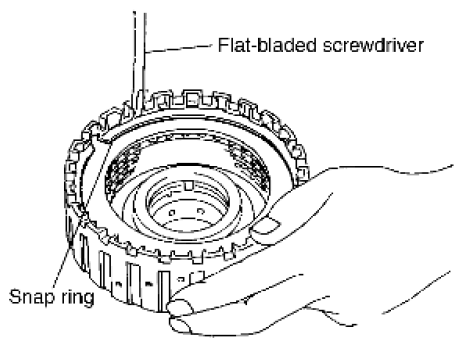

Fig 2: Installing Snap Ring In Direct Clutch Drum
Courtesy of SUZUKI OF AMERICA CORP.
