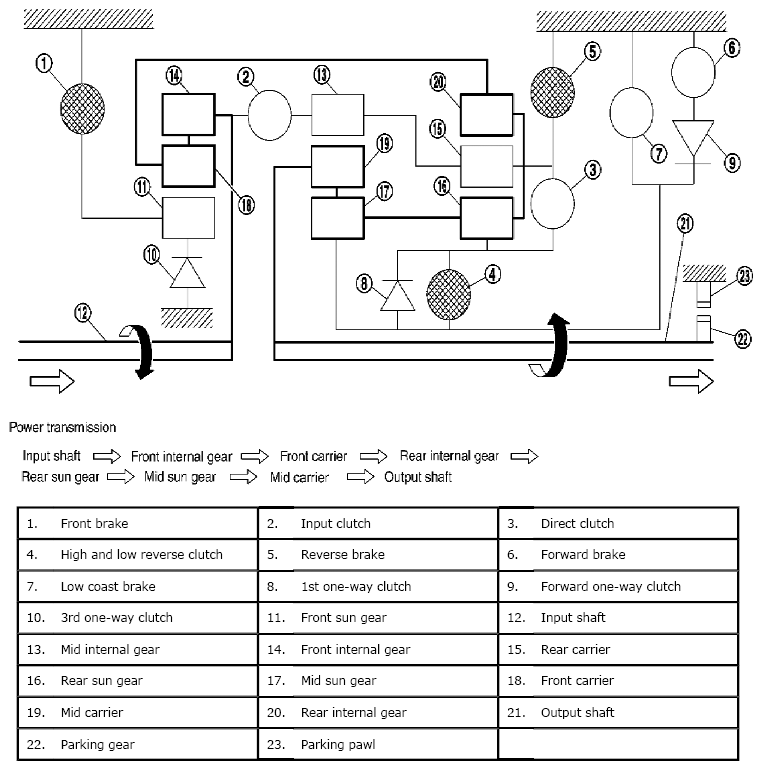

"R" Position
WARNING: This page is about a different variant/trim than selected.
- The front brake fastens the front sun gear.
- The high and low reverse clutch is coupled, and the mid sun gear and rear sun gear are connected.
- The reverse brake fastens the rear carrier.
Courtesy of SUZUKI OF AMERICA CORP.
