A/T Control System: Shift Mechanism: Construction

WARNING: This page is about a different variant/trim than selected.

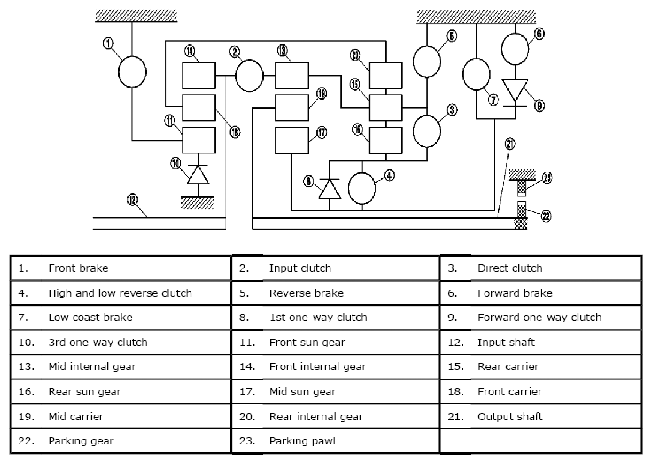

Fig 1: A/T Control System - Shift Mechanism Diagram
G06442773Courtesy of SUZUKI OF AMERICA CORP.
