Clutch And Band Chart

WARNING: This page is about a different variant/trim than selected.

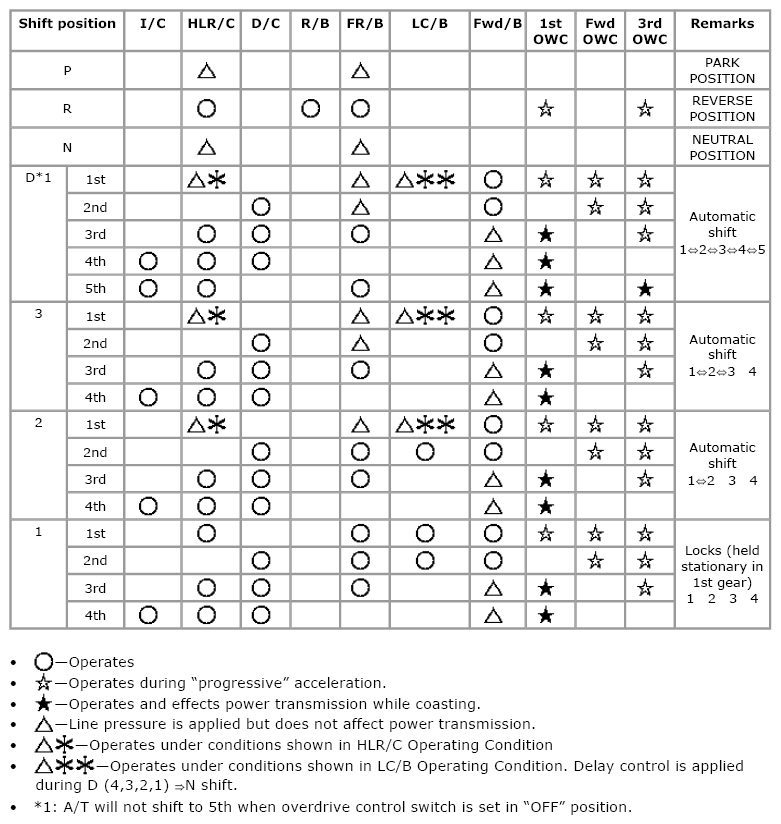

Fig 1: Clutch And Band Chart
G06442774Courtesy of SUZUKI OF AMERICA CORP.

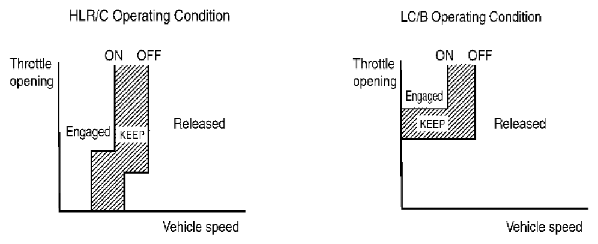

Fig 2: Throttle Valve Opening Angle Graph
G06442775Courtesy of SUZUKI OF AMERICA CORP.
