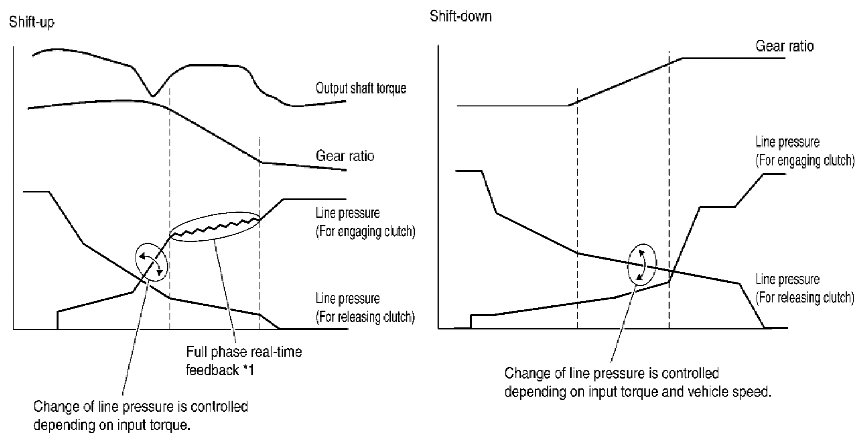

Shift Change System Diagram
WARNING: This page is about a different variant/trim than selected.
Courtesy of SUZUKI OF AMERICA CORP.
*1: Full phase real-time feedback control monitors movement of gear ratio at gear change, and controls oil pressure at real-time to achieve the best gear ratio.
