A/T Shift Lock System: Component Parts Location
A/T Shift Lock System: Component Parts Location
WARNING:
This page is about a different variant/trim than selected.

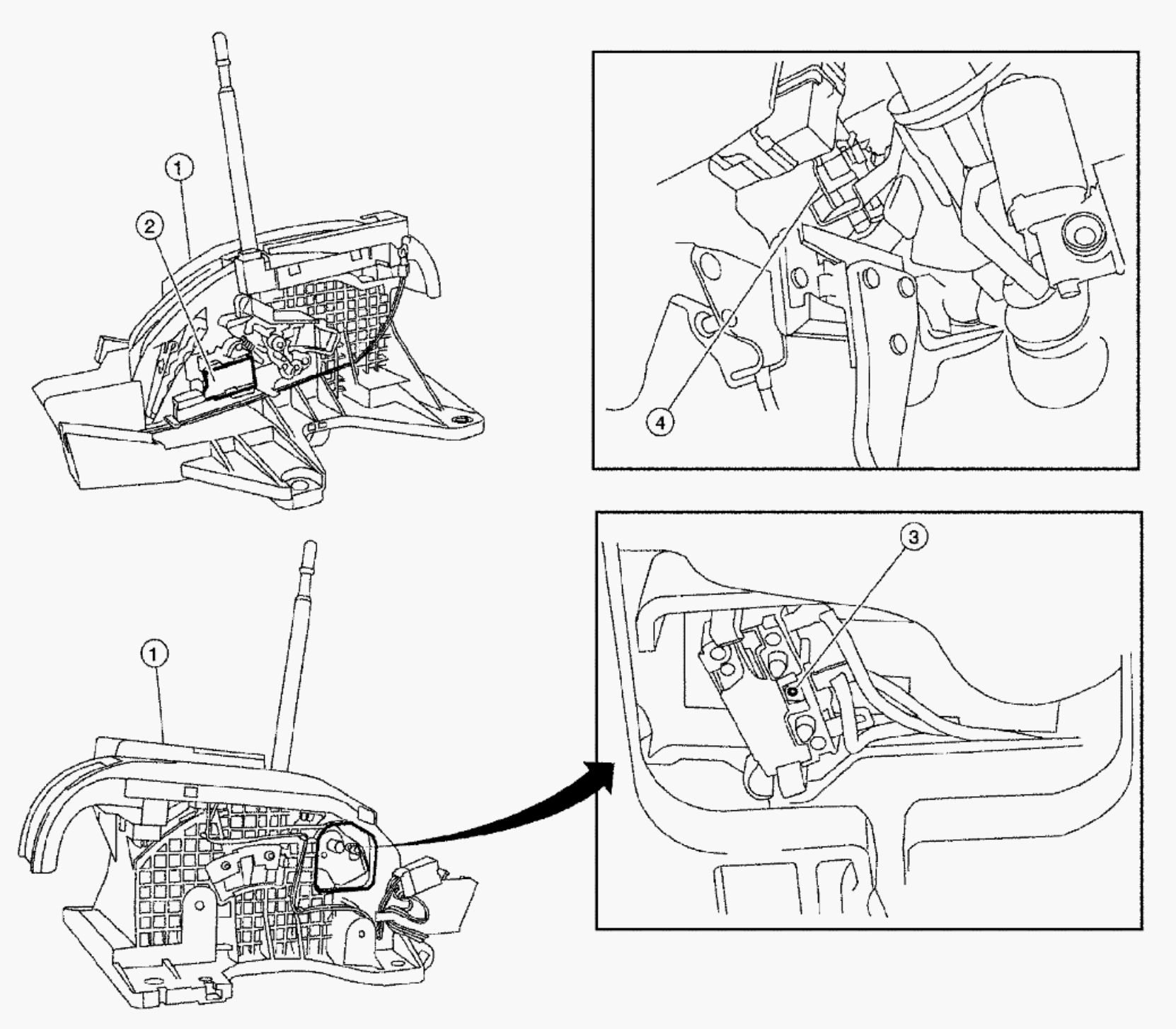

Fig 1: Identifying A/T Shift Lock System Components (1 of 2)
Courtesy of SUZUKI OF AMERICA CORP.

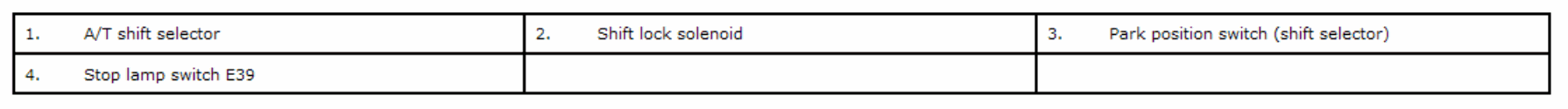

Fig 2: Identifying A/T Shift Lock System Components (2 of 2)
Courtesy of SUZUKI OF AMERICA CORP.
