Digital Radio Receiver Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

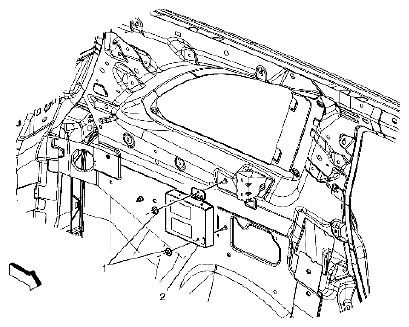

Fig 1: Identifying Digital Radio Receiver Assembly & Nuts

Courtesy of SUZUKI OF AMERICA CORP.

DIGITAL RADIO RECEIVER REPLACEMENT REFERENCE

Callout	Component Name
Preliminary Procedure Remove the left rear quarter lower trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT .
1	Digital Radio Receiver Nut (Qty: 4) Tightening torque 4 N.m (35 lb in)
2	Digital Radio Receiver Assembly Disconnect the antenna and electrical connection. Reprogram the digital radio receiver after replacement. Refer to CONTROL MODULE REFERENCES .
