Entertainment/Communication Component Views

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

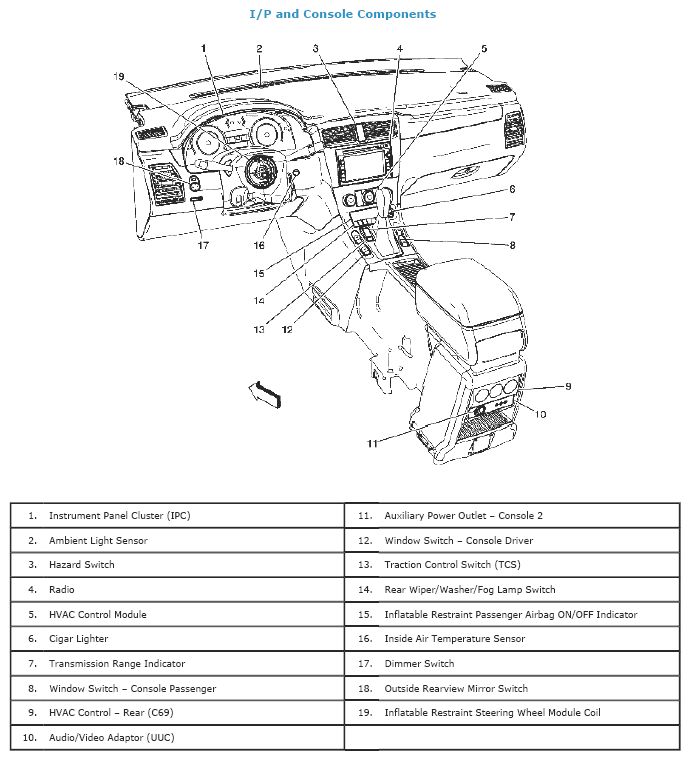

Fig 1: Identifying I/P & Console Components

Courtesy of SUZUKI OF AMERICA CORP.

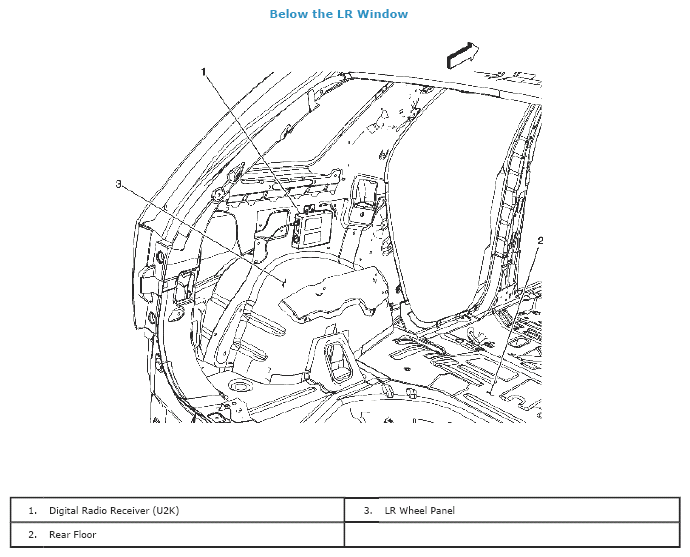

Fig 2: Identifying Below LR Window Components

Courtesy of SUZUKI OF AMERICA CORP.

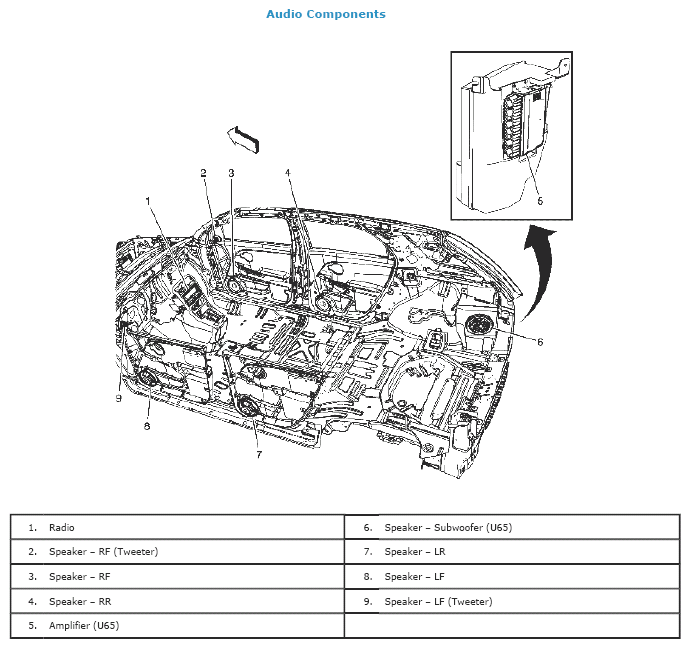

Fig 3: Identifying Audio Components

Courtesy of SUZUKI OF AMERICA CORP.

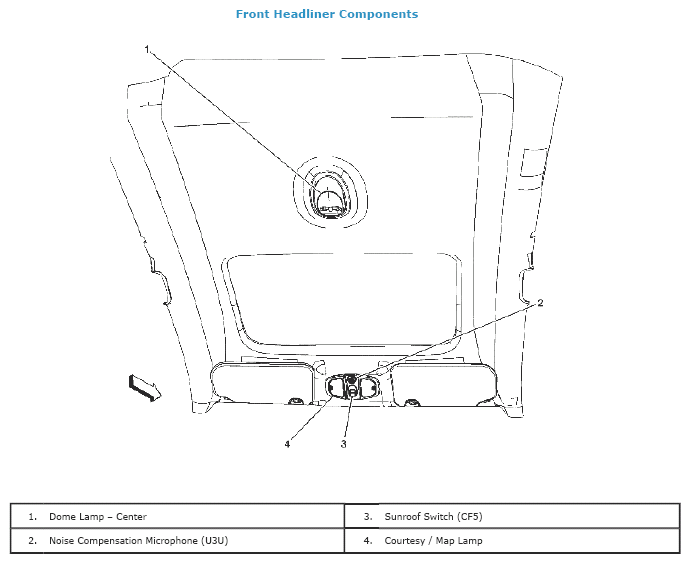

Fig 4: Identifying Front Headliner Components

Courtesy of SUZUKI OF AMERICA CORP.

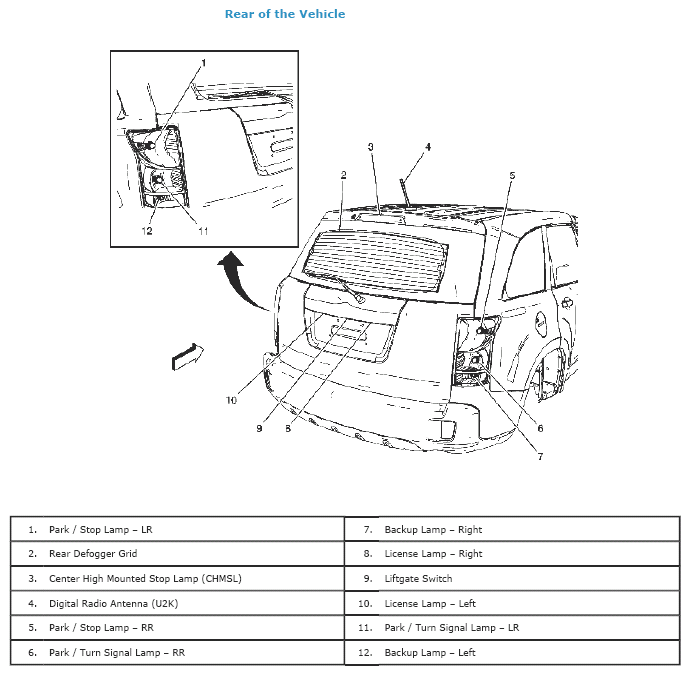

Fig 5: Identifying Rear Vehicle Components

Courtesy of SUZUKI OF AMERICA CORP.
