Rear Output Shaft Housing Installation

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

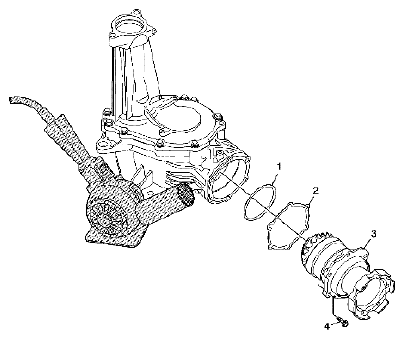

Fig 1: Installation Of Rear Output Shaft Housing

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME TABLE

Callout	Component Name
CAUTION: Refer to FASTENER NOTICE . Fastener Tightening Specifications: Refer to FASTENER TIGHTENING SPECIFICATIONS - TRANSFER CASE - GETRAG 760 .
1	Transfer Case Rear Output Shaft Housing Seal O-Ring
2	Transfer Case Rear Output Shim
3	Transfer Case Rear Output Shaft Housing CAUTION: Do not use a drive hammer when the splines are not engaged. Use of a drive hammer when the splines are not engaged will damage the output shaft teeth. Use of a heat gun allows easy alignment of the bolt holes to the housing during assembly. Rotate the pinion gear during assembly to engage the gear teeth. Special Tools J 25070 Heat Gun - 500-750F
4	Transfer Case Rear Output Shaft Housing Bolts (Qty: 6) Tightening torque 29 N.m (21 lb ft)
