Rear Output Shaft Housing Assembly
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

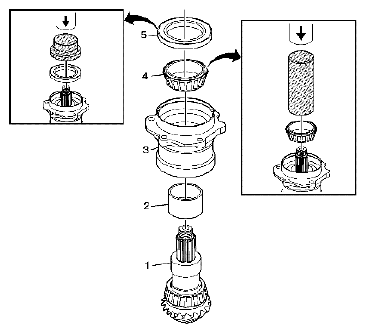

CALLOUT AND COMPONENT NAME TABLE
| Callout | Component Name |
|---|---|
| 1 | Transfer Case Rear Output Shaft |
| 2 | Transfer Case Rear Output Shaft Bearing Spacer |
| 3 | Transfer Case Rear Output Shaft Housing |
| 4 | Transfer Case Rear Output Shaft Bearing Assembly Tip: Use a press with the J 5590 to install the housing and bearings to the output shaft. Special Tools J 5590 Pinion Bearing Race Installer - Rear |
| 5 | Transfer Case Rear Output Shaft Seal Tip: Use a press with the DT-48075 to install the seal. Special Tools DT-48075 Output Shaft Seal Installer |
