Intermediate Drive Shaft Installation

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

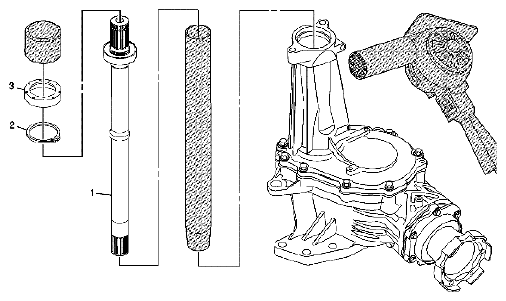

Fig 1: Installation Of Intermediate Drive Shaft

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME TABLE

Callout	Component Name
1	Front Wheel Drive Intermediate Shaft CAUTION: DT-48094 must be used over the intermediate shaft prior to installation in order to protect the intermediate shaft seal from damage. Special Tools DT-48094 Inner Drive Shaft Seal Protector J 25070 Heat Gun - 500-750F
2	Front Wheel Drive Retainer
3	Front Wheel Drive Shaft Shield Special Tools DT-48076 Rock Guard Installer
