Housing O-Ring, Vent Assembly, Drain and Fill Plug Installation
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

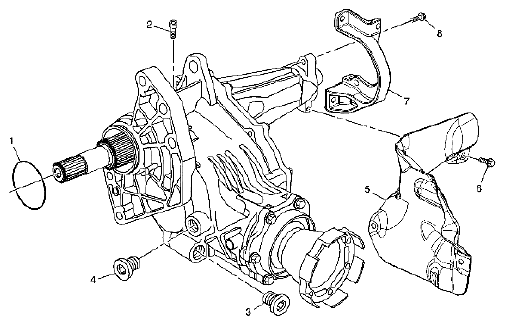

CALLOUT AND COMPONENT NAME TABLE
| Callout | Component Name |
|---|---|
|
CAUTION:
Refer to FASTENER NOTICE
. Fastener Tightening Specifications: Refer to FASTENER TIGHTENING SPECIFICATIONS - TRANSFER CASE - GETRAG 760 . |
|
| 1 | Transfer Case O-Ring Seal |
| 2 | Transfer Case Vent Assembly Tip: Replace the vent if damaged or blocked. |
| 3 | Drain Plug Tightening torque 39 N.m (29 lb ft) |
| 4 | Fill Plug Tightening torque 39 N.m (29 lb ft) |
| 5 | Transfer Case Heat Shield |
| 6 | Transfer Case Heat Shield Bolts (Qty: 4) Tightening torque 11 N.m (97 lb in) |
| 7 | Transfer Case Bracket |
| 8 | Transfer Case Bracket Bolts (Qty: 2) Tip: Tighten the bracket bolts to light assembly torque. Tighten to specification after the transfer case is mounted in the vehicle. Refer to FASTENER TIGHTENING SPECIFICATIONS - TRANSFER CASE - GETRAG 760 . |
