Engine Electrical Component Views

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

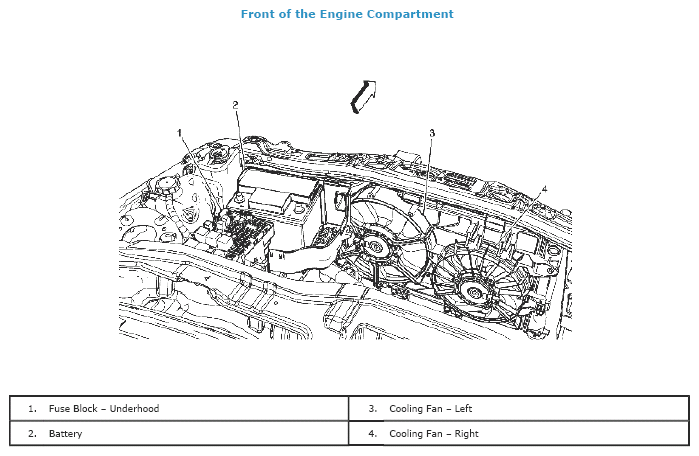

Fig 1: Identifying Engine Electrical Components - Front Of Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

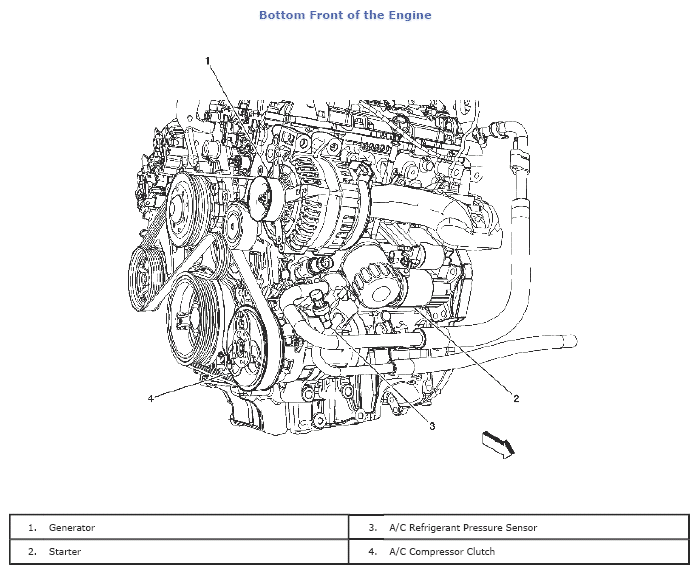

Fig 2: Identifying Engine Electrical Components - Bottom Front Of Engine

Courtesy of SUZUKI OF AMERICA CORP.

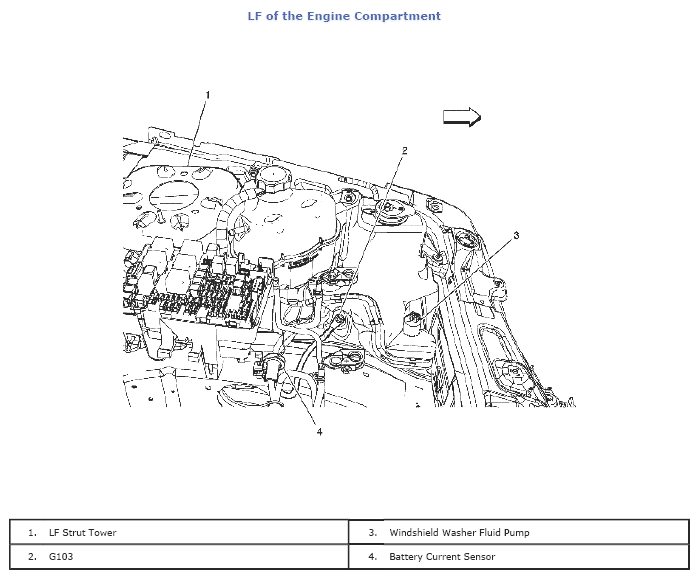

Fig 3: Identifying Engine Electrical Components - LF Of Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.
