Section 18 (Wipers/Washers)
>>
Schematic and Routing Diagram
>>
Wiper/Washer Schematic
Wiper/Washer Schematic
WARNING:
This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

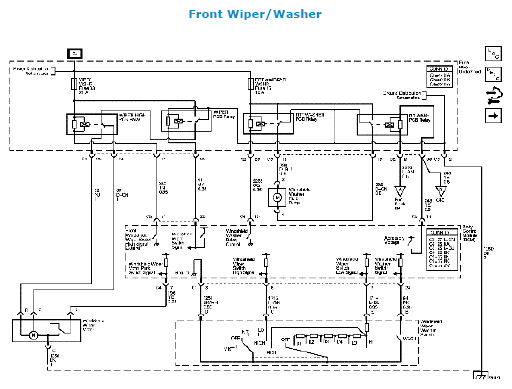

Fig 1: Identifying Front Wiper & Washer Schematics Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.

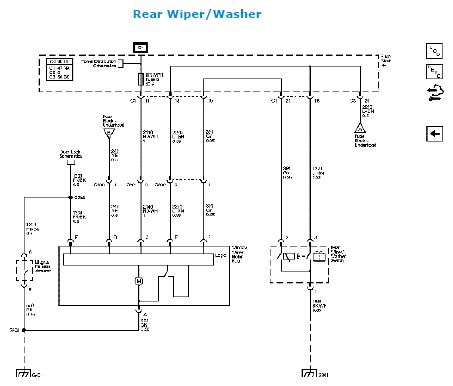

Fig 2: Identifying Rear Wiper & Washer Schematics Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
