Wiper/Washer Component Views

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

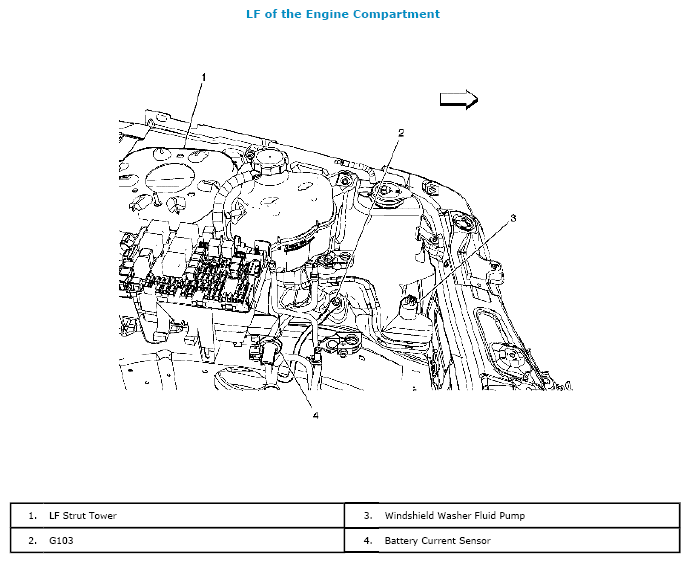

Fig 1: Identifying Windshield Washer Fluid Pump, Battery Current Sensor & LF Strut Tower

Courtesy of SUZUKI OF AMERICA CORP.

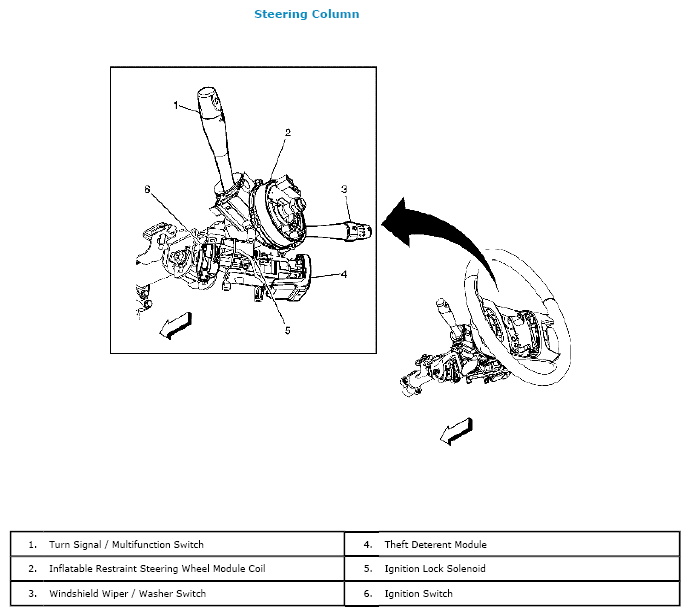

Fig 2: Identifying Multifunction Switch, Windshield Wiper & Washer Switch

Courtesy of SUZUKI OF AMERICA CORP.

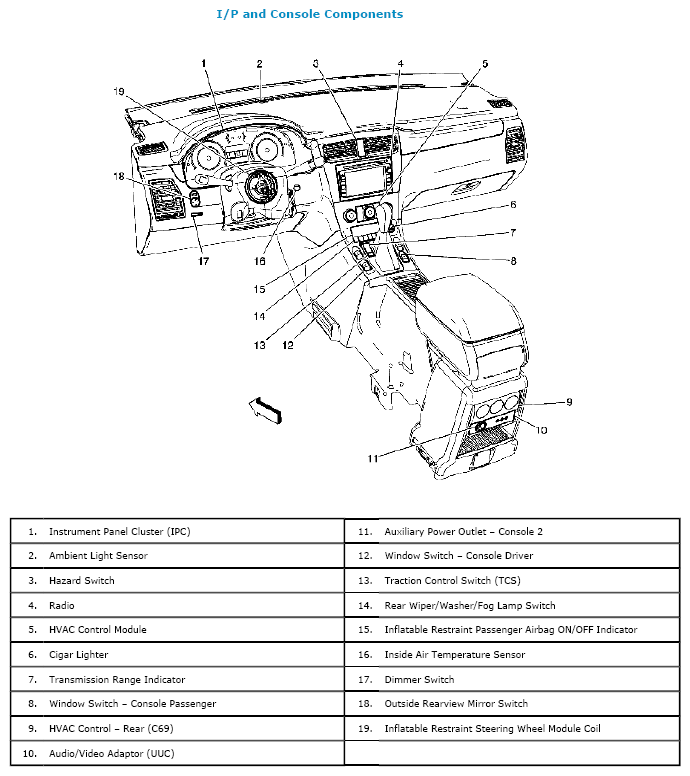

Fig 3: Identifying Instrument Panel Cluster (IPC), Ambient Light Sensor & Hazard Switch

Courtesy of SUZUKI OF AMERICA CORP.
