Liftgate Latch Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

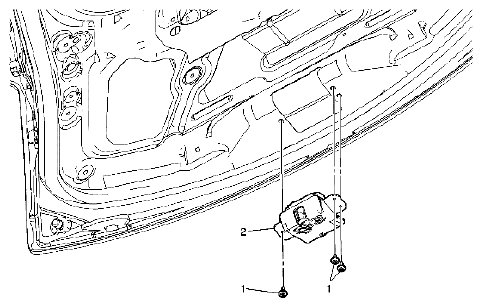

Fig 1: Liftgate Latch Components And Placement

Courtesy of SUZUKI OF AMERICA CORP.

LIFTGATE LATCH REPLACEMENT REFERENCE

Callout	Component Name
Preliminary Procedure Remove the liftgate lower trim panel. Refer to LIFTGATE TRIM PANEL REPLACEMENT (UPPER) and LIFTGATE TRIM PANEL REPLACEMENT (LOWER) .
1	Liftgate Latch Bolts (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 10 N.m (89 lb in)
2	Liftgate Latch Tip: Disconnect any electrical connectors.
