Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

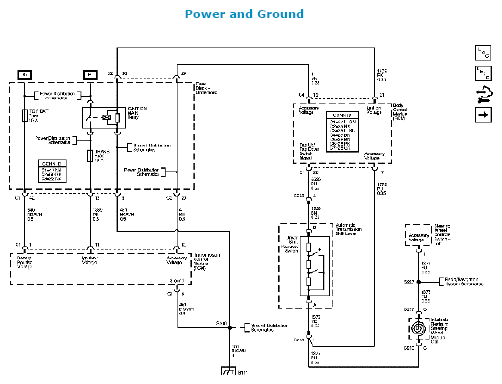

Fig 1: Identifying Automatic Transmission Controls Schematic Diagram (Power & Ground)

Courtesy of SUZUKI OF AMERICA CORP.

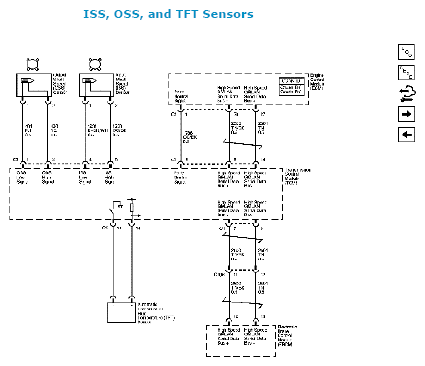

Fig 2: Identifying Automatic Transmission Controls Schematic Diagram (ISS, OSS & TFT Sensors)

Courtesy of SUZUKI OF AMERICA CORP.

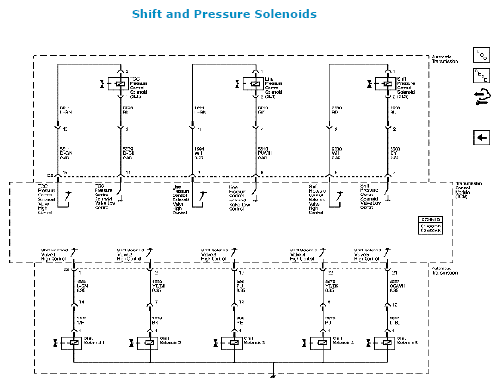

Fig 3: Identifying Automatic Transmission Controls Schematic Diagram (Shift & Pressure Solenoids)

Courtesy of SUZUKI OF AMERICA CORP.
