Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

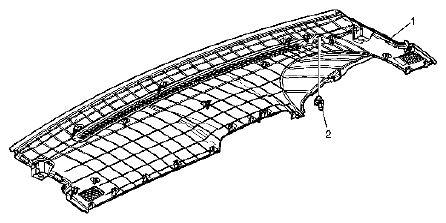

Fig 1: Identifying Instrument Panel Trim Panel & Ambient Light Sensor

Courtesy of SUZUKI OF AMERICA CORP.

AMBIENT LIGHT SENSOR REPLACEMENT REFERENCE

Callout	Component Name
1	Instrument Panel Trim Panel Procedure Remove the instrument panel upper trim pad. Refer to INSTRUMENT PANEL UPPER TRIM PANEL REPLACEMENT .
2	Ambient Light Sensor Tip: Twist and pull down to remove the sensor.
