Front Seat Head Restraint Guide Replacement (Non Fold Flat)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

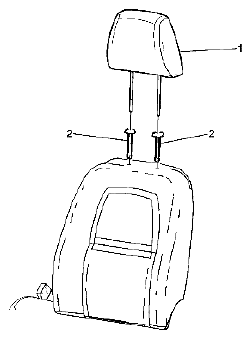

Fig 1: Identifying Front Seat Head Restraint Guide & Front Seat Head Restraint
G04843000Courtesy of SUZUKI OF AMERICA CORP.
COMPONENTS REFERENCE

Callout Component Name
1 Front Seat Head Restraint
Refer to FRONT SEAT HEAD RESTRAINT REPLACEMENT .
2 Front Seat Head Restraint Guides
  1. Disconnect the lower J-hook retainer from the seat back trim cover.
  2. Carefully pull up the trim cover, disengaging the hook and loop retainers, until the headrest guides are exposed.
  3. Squeeze the locking tabs on the headrest guide and pull the guides up and out of the seat back pad.
