Engine Electrical Component Views

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

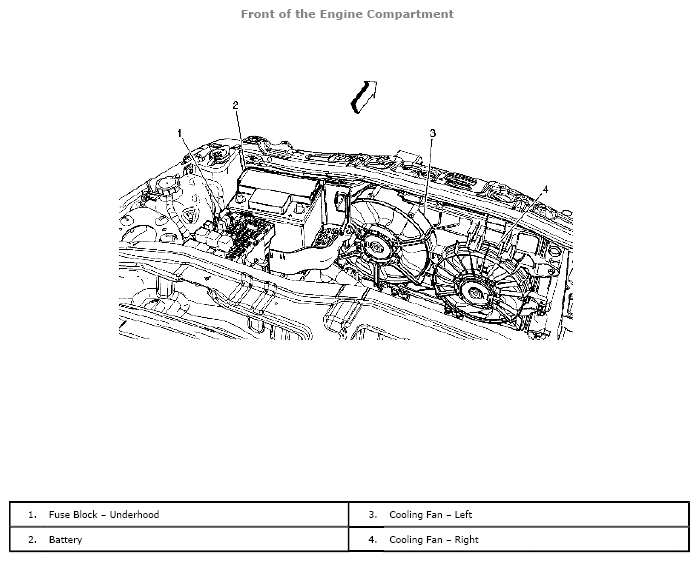

Fig 1: Engine Electrical Component Location (Front Of Engine Compartment)

Courtesy of SUZUKI OF AMERICA CORP.

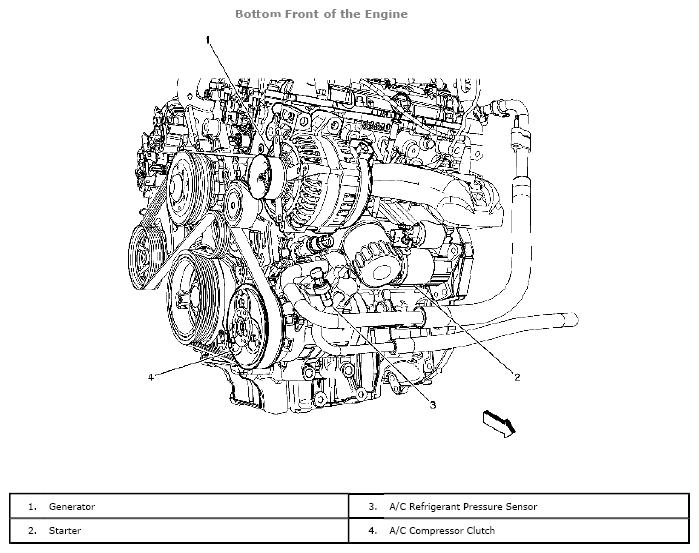

Fig 2: Engine Electrical Component Location (Bottom Front Of Engine)

Courtesy of SUZUKI OF AMERICA CORP.

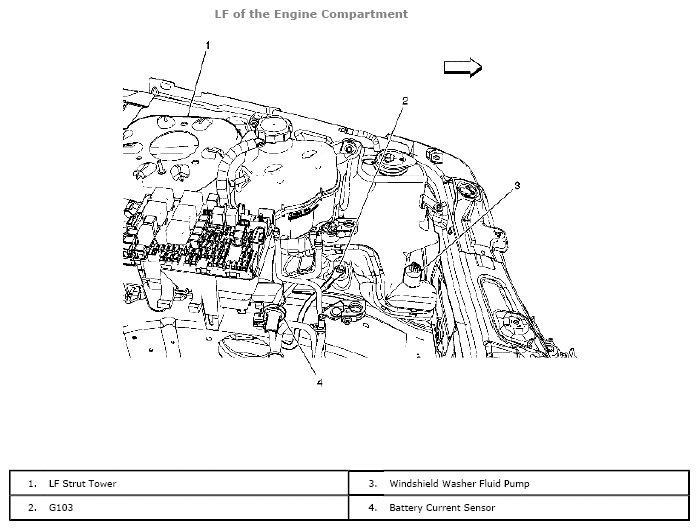

Fig 3: Engine Electrical Component Location (LF Of Engine Compartment)

Courtesy of SUZUKI OF AMERICA CORP.
